Brand: HYFILTRATE
Model: 060ACS
Filtration accuracy: 1-50μm
Country of origin: China
Filter media: glass fibre
Filter element type: Filter element of air compressor
Length: Standard size

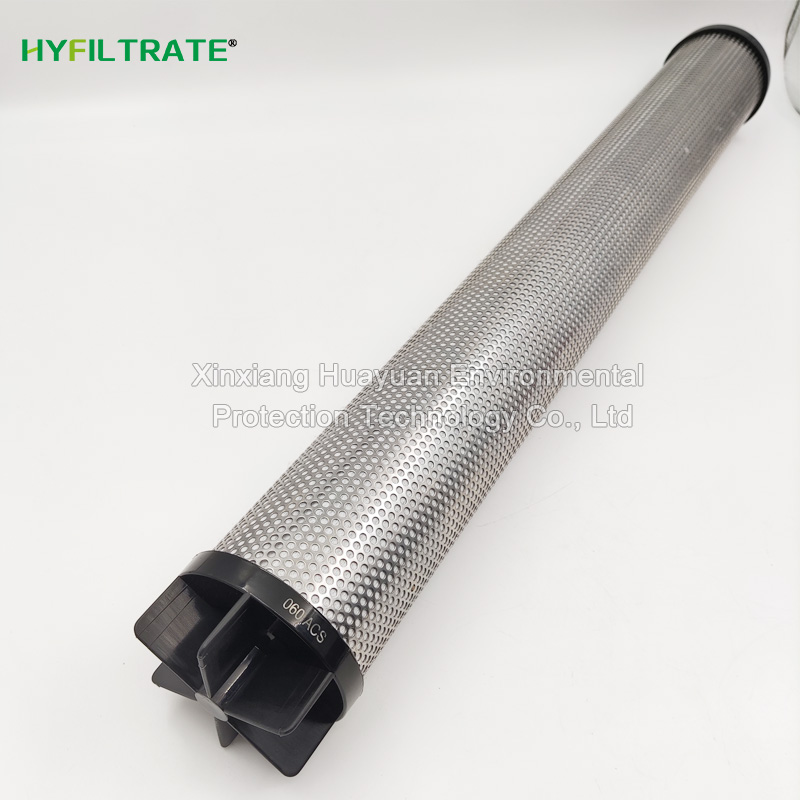

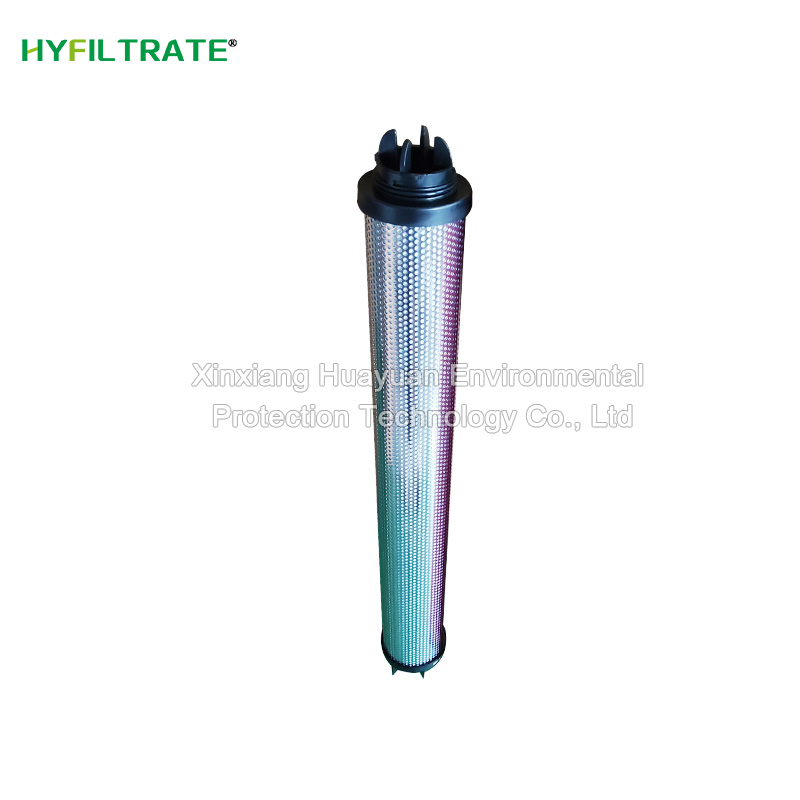

The 060ACS Filter Element has five core advantages: ultrafine filtration (0.01 μ m), high pressure resistance (3MPa), wide temperature range (-20~120 ℃), corrosion resistance, and long service life. It is an efficient solution for compressed air purification.
The core features of 060ACS precision filter cartridge are as follows:
1、 Filtering performance
Ultra fine filtration: 0.01 μ m high-precision interception of oil mist, dust, and liquid water to meet industrial cleaning needs
Multi layer structure: using hydrophobic glass fiber or activated carbon composite materials to improve oil and water removal efficiency
2、 Durability and Applicability
High pressure resistance: 1MPa (original factory)~3MPa (alternative model), compatible with compressed air systems
Wide temperature range: -20 ℃~120 ℃ stable operation, resistant to chemical corrosion such as acid and alkali
Long lifespan: Low resistance design extends the service life of the filter element, and can be cleaned or replaced
3、 Application advantages
Industrial compatibility: replace original Dominic filter element and Atlas filter element
Safety design: fluororubber sealing ring is leak proof, and hydrophobic foam sleeve is liquid backflow proof
The technical parameters of the 060ACS filter cartridge are as follows:
1、 Basic parameters
Filtering accuracy: 0.01 μ m (intercepting oil mist, dust, and liquid water)
Working pressure difference: 0.2MPa (original factory)~3MPa (alternative model)
Applicable media: industrial fluids such as compressed air and fire-resistant oil
2、 Material and Structure
Filter material: glass fiber folded or activated carbon composite material (adsorbing odors)
Sealing ring: Fluororubber (high temperature resistant, corrosion-resistant)
3、 Performance standards
Oil mist residue: ≤ 0.003mg/m ³ (at 21 ℃)
Testing and certification: Complies with ISO 2941/2942/3723 and other anti rupture and compatibility standards
4. Application scenarios
Industrial field: main pipeline of air compressor, post-treatment system of refrigerated dryer
Special requirements: High cleanliness compressed air for food and beverage, respiratory system, etc
