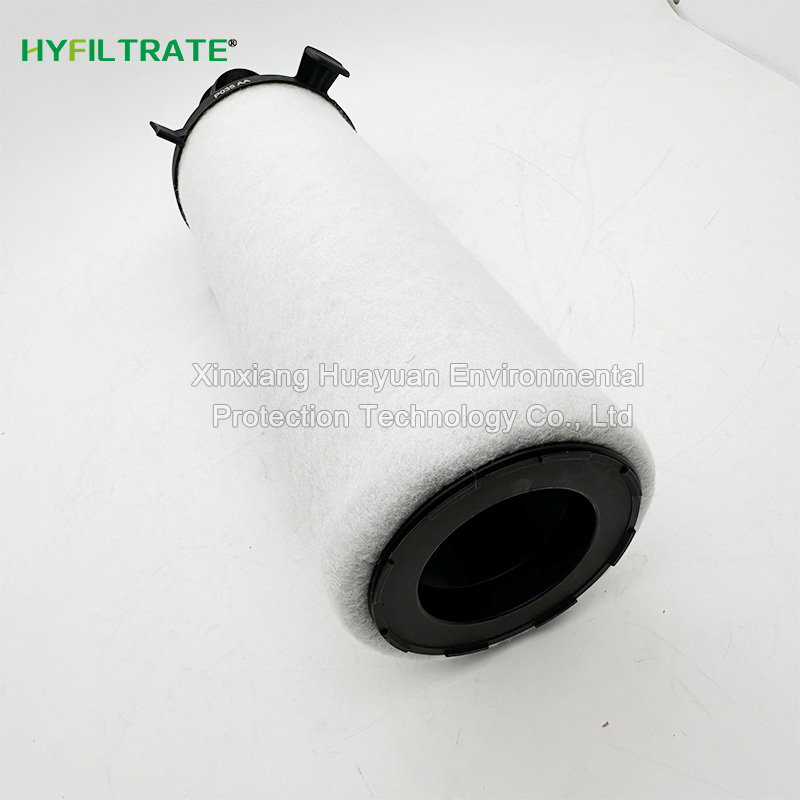

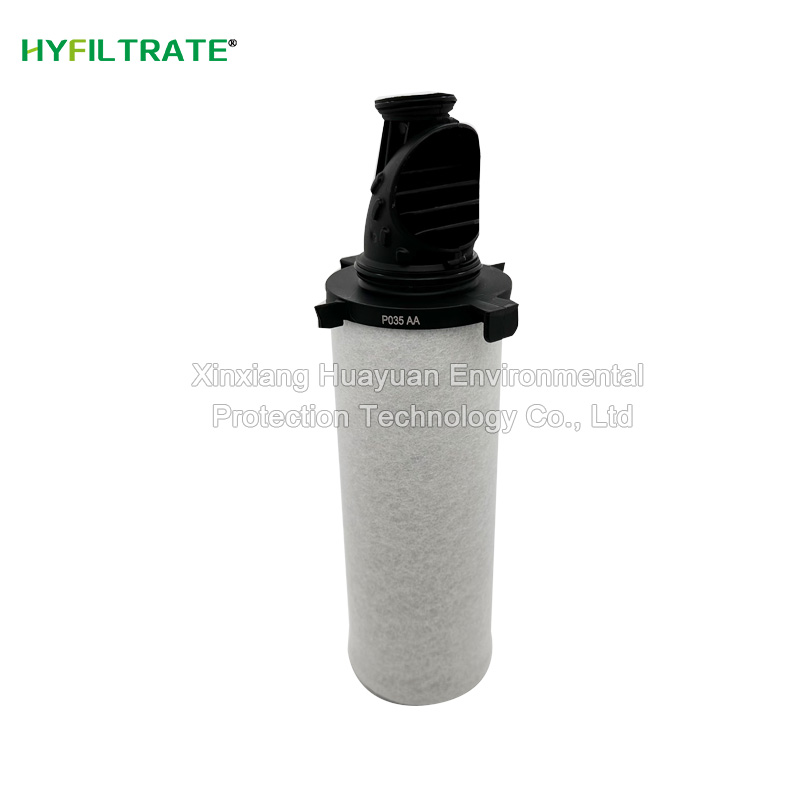

The precision Filter Element of P035 AA air compressor has a filtration accuracy of up to 0.01 μ m, a filtration efficiency of 99.99%, an oil content that can be controlled below 0.01ppm, an initial pressure difference of less than 0.02MPa, a large pollutant carrying capacity, high pressure stability, and the advantages of corrosion resistance and easy replacement.

The characteristics of precision filter element for P035 AA air compressor mainly include the following:

High filtration accuracy: Based on the data of its similar model 035AA, it can intercept micro particles as low as 0.01 μ m and efficiently filter out small particle impurities, oil mist, and microorganisms in compressed air.

Agglomeration filtration: AA usually represents high-efficiency coagulation and dry particle filtration types, suitable for removing water, oil aerosols, and solid particles from compressed air and nitrogen gas. It can condense and separate oil and water droplets for discharge, and is suitable for Parker OIL X EVOLUTION series and other coagulation filters.

Stable differential pressure performance: For example, the 035AA model has a dry pressure difference of 80mbar and a wet pressure difference of 190mbar. The differential pressure characteristic is designed to adapt to the system, which can reduce pressure loss and maintain good filtration performance in the stable pressure range.

Reliable filter material performance: Some P035 series filters use high-quality filter materials such as imported glass fiber or filter felt, which have good oil resistance and hydrophobicity, ensuring filtration efficiency and extending service life.

Sealed and anti short circuit design: The joint between the filter element and the filter housing is often sealed with a reliable sealing ring, which can prevent airflow short circuit and prevent impurities from directly entering the downstream pipeline without being filtered by the filter material.

Corrosion resistant and widely applicable: The filter element end cap is made of corrosion-resistant reinforced nylon and can be used in some harsh working conditions, widely serving industries such as chemical, food, and electronics that require purified compressed air.
