YPM660 Filter housing application

Author:XYFILTER2020-11-19 13:39:38
支持键翻阅图片
|列表查看
  • YPM660 Filter housing application

    YPM660 Filter housing application(1/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(2/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(3/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(4/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(5/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(6/7)

  • YPM660 Filter housing application

    YPM660 Filter housing application(7/7)

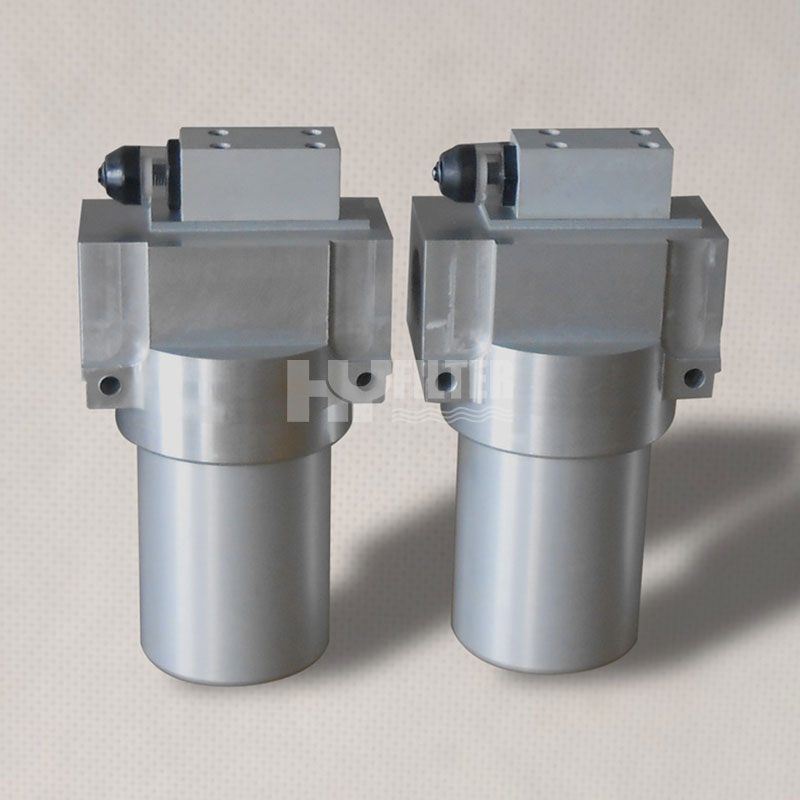

YPM660 medium pressure line filter is installed in the pressure line of the hydraulic system to filter out solid particles and colloidal substances in the working medium, which can effectively control the pollution degree of the working medium. At the same time, the differential pressure transmitter and bypass valve can be assembled as required. The filter materials of the hydraulic oil Filter Element are composite fibers, kapok shaped filter paper, stainless steel sintered felt, and stainless steel woven mesh. The upper and lower shells are made of aluminum alloy material, which is light in weight, compact in structure and beautiful in appearance.


Product features of YPM660 medium pressure line filter:

1. High porosity and excellent permeability, less pressure loss and large flow;

2. Large dirt holding capacity, high filtration precision and long replacement cycle;

3. Excellent temperature resistance, can be used for a long time at 480 ℃, resistant to corrosion by nitric acid, alkali, organic solvents, and medicines;

4. It can be folded to increase the filtering area and can be welded;

5. High strength, even if the liquid is strongly washed and vibrated, the fibers will not fall off;


Technical parameters of YPM660 medium pressure pipeline filter:

Model: YPM-660

Working pressure: 21MPa

Operating temperature: -25~110°C

Nominal flow: 660L/min

Filtration precision: 3um

Signaling pressure difference of transmitter: 0.5MPa

Bypass valve opening differential pressure: 0.6MPa

Working medium: mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, water


Application areas:

1. Metallurgical industry: used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.

2. Petrochemical industry: separation and recovery of products and intermediate products in the process of oil refining and chemical production, particle removal and filtration of oilfield well injection water and natural gas.

3. Textile industry: purification and uniform filtration of polyester melt in the process of drawing, protection and filtration of air compressors, and degreasing and water removal of compressed gas.

4. Pharmaceutical industry: pretreatment and filtration of reverse osmosis water and deionized water, pretreatment and filtration of washing liquid and glucose.

5. Mechanical processing: lubrication system of papermaking machinery, mining machinery, injection molding machine and large machinery and purification of compressed air, filtration of tobacco processing equipment and spraying equipment.
