Brand: HYFILTRATE
Model: N15DM010 3115180
Filtration accuracy: 1-50um
External diameter: Standard size
Length: Standard size
Filter media: Hydraulic oil, lubricating oil, glycol, water
Filter element type: Pleated filter element
Country of origin: China

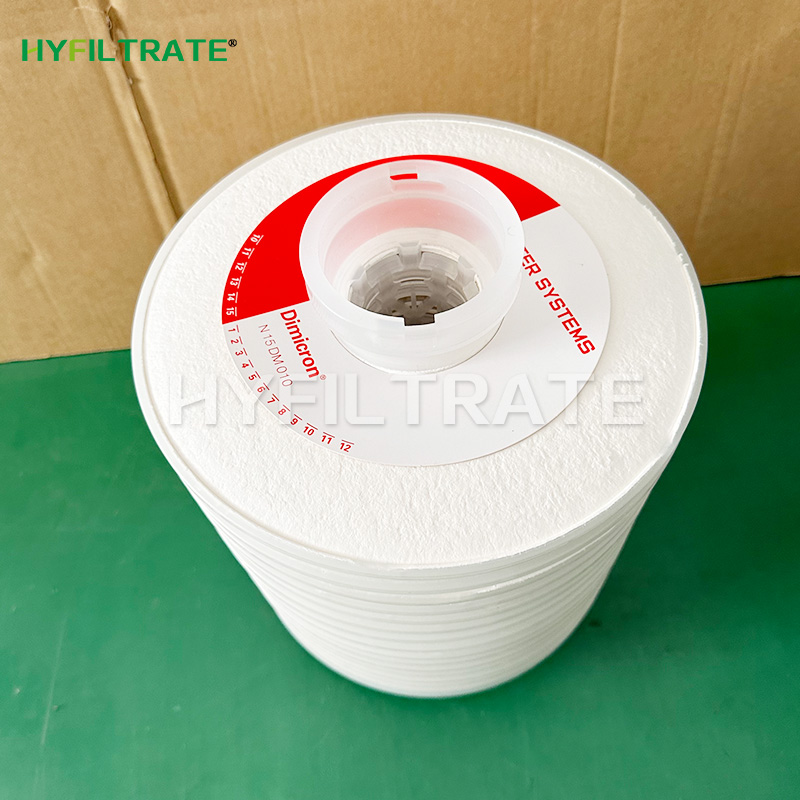

N15DM010 3115180 Filter Elements can filter ultrafine solid particle contaminants and remove oil degradation products from hydraulic and lubricating oils in the side stream. When the hydraulic oil contains free water, these filter elements can also be used to remove some of the water.
N15DM002 1251590
N15DM005
N15DM010 3115180
N15DM020
N15DM030
Fields of application
■ Offline filtration in
lubrication systems
■ Offline filtration in
hydraulic systems
Contamination retention capacity in
metalworking applications：~ 4,000 g
Contamination retention
capacity with iron oxide：
~ 2,400 g
Contamination retention capacity in acc.
with ISO 16889 with ISOMTD：
~ 500 g
Water retention capacity ：~ 1,000 ml
Filtration ratings： 2 µm, 5 µm, 10 µm, 20 µm, 30 µm
ßx values ：> 1000
Permitted fluid temperature： -10 to 80 °C / 14 to 176 °F
Storage temperature： 5 to 40 °C / 41 to 104 °F
Filter material：Cellulose
Sealing material FKM (FPM, Viton®)
Other materials Standard: polypropylene
Optional: polyamide
