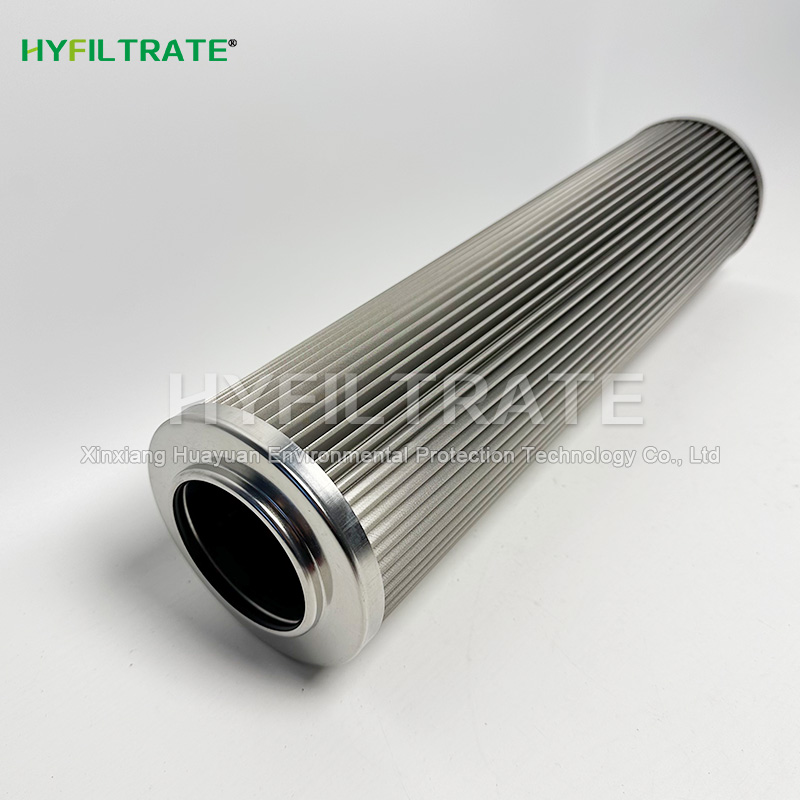

01. NL630.10G.30.E.P.VA 319133 Replaces EATON filter cartridge

01. NL630.10G.30.E.P.VA 319133 replaces EATON filter element with a filtration accuracy of 10 microns. It uses high-quality 304 stainless steel filter material and end caps, which have strong corrosion and high temperature resistance characteristics. It can be used for oil filtration in hydraulic and lubrication systems to filter out pollutants in the system. Mainly installed in hydraulic systems: on the oil suction line, pressure oil line, return oil line, bypass, and separate filtration system


Basic Barameters

Brand: HYFILTRATE

Model: 01. NL630.10G.30.E.P.VA 319133

Filtration accuracy: 10um

Outer diameter: 100

inside diameter: 60

height: Standard size

Country of origin: China

01. NL630.10G.30.E.P.VA 319133 replaces EATON Filter Element with a filtration accuracy of 10 microns. It uses high-quality 304 stainless steel filter material and end caps, which have strong corrosion and high temperature resistance characteristics. It can be used for oil filtration in hydraulic and lubrication systems to filter out pollutants in the system. Mainly installed in hydraulic systems: on the oil suction line, pressure oil line, return oil line, bypass, and separate filtration system. The application range of 319133 filter element is very wide, covering almost all industries: steel, power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, machine tools and engineering machinery, construction machinery and other fields.


In these fields, the 319133 filter element has become an important component for ensuring stable operation of equipment due to its excellent filtration performance and durability. Especially in the steel and metallurgical industries, under harsh working conditions of high temperature, high pressure, and containing a large amount of metal particles, this filter element, with its high-quality 304 stainless steel filter material's corrosion and high temperature resistance characteristics, effectively extends the service life of hydraulic and lubrication systems, reduces downtime caused by pollution, and significantly improves production efficiency.

In addition, in the fields of shipbuilding and aviation, the safety and reliability requirements for equipment are extremely high. The precise filtering ability of the 319133 filter element ensures the purity of hydraulic oil and lubricating oil, providing good protection for precision mechanical components and reducing the risk of safety accidents caused by oil contamination.


With the increasing awareness of environmental protection, industries such as chemical and papermaking have become increasingly strict in controlling emissions. The application of 319133 filter cartridges has also helped these industries achieve more efficient pollutant filtration, reduce the emission of harmful substances, and contribute to environmental protection.


In summary, the 319133 filter cartridge plays an indispensable role in many industries due to its excellent filtration performance, wide applicability, and environmental contributions. It is the preferred product for improving equipment performance, ensuring production safety, and promoting green development.



Technical Parameter

Model: 01.NL630.10G.30.E.P.VA 319133

Material: 304 stainless steel

Filtering accuracy: 10 microns

Outer diameter: 100mm

Inner diameter: 60mm

Height: 400mm

Delivery time: 7 days

Warranty: 6 months

Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
