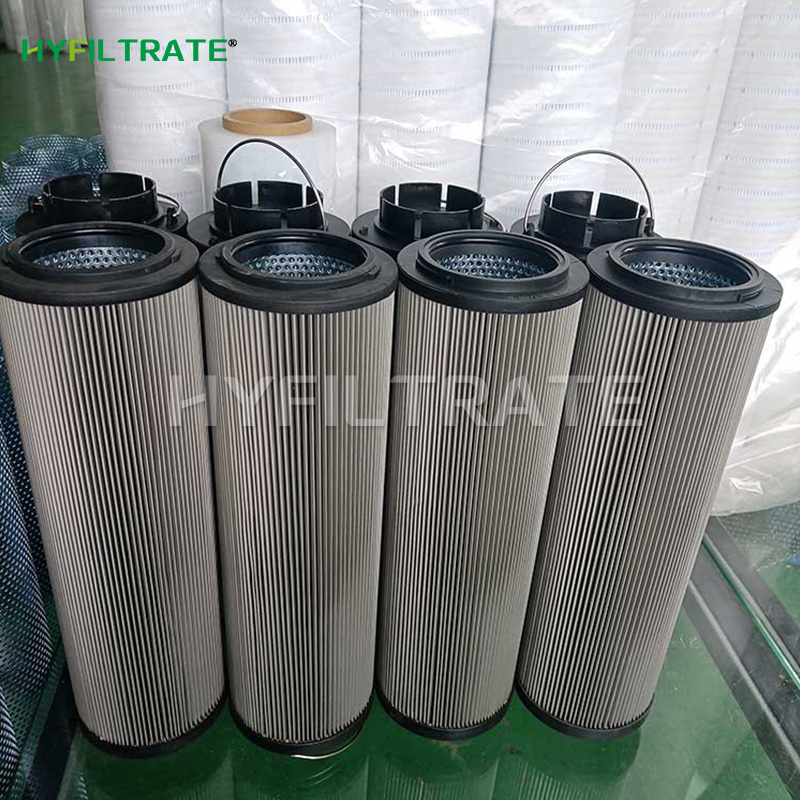

1300R020BN4HC High pressure oil filter element

1300r020bn4hc high pressure oil filter element is installed in the oil circuit of the hydraulic system, which is used to remove the metal powder and other mechanical impurities worn by the components in the hydraulic system, so as to keep the oil circuit clean and prolong the service life of the hydraulic system. The low pressure series filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can automatically open to ensure the norma


Basic Barameters

Brand: HUAYUANFILTER

Model: 1300R020BN4HC

Filtration accuracy: 5um-10um

External diameter: 143.5mm

Length: 483mm

Filter media: Air filtration, oil filtration, water filtration

Filter element type: Folding filter element

Country of origin: Xinxiang, Henan, China

1300r020bn4hc high pressure oil Filter Element is installed in the oil circuit of the hydraulic system, which is used to remove the metal powder and other mechanical impurities worn by the components in the hydraulic system, so as to keep the oil circuit clean and prolong the service life of the hydraulic system. The low pressure series filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can automatically open to ensure the normal operation of the system. At present, this series of products are substitutes of the same kind of products in the United States, Germany, Britain, Italy and other countries.


1300R010BN4HC

1300R005BN4HC

1300R025BN4HC

1300R050BN4HC

1300R1002BN4HC

Technical Parameter

Model: 1300R0202BN4HC

Outer diameter: 143mm

Inner diameter: standard

Height: Standard

Filtering accuracy: 25 microns

Warranty period: 6 months

Filter media: hydraulic oil, lubricating oil, air, oil mist

Origin: China

Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd

1. Filtration accuracy: 25 μ m Filtration ratio: X ≥ 100

2. Work pressure: (MAX) 21Mpa

3. Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water ethylene glycol, etc

4. Working temperature: -30 ℃~+110 ℃

5. Filter material: Glass fiber
