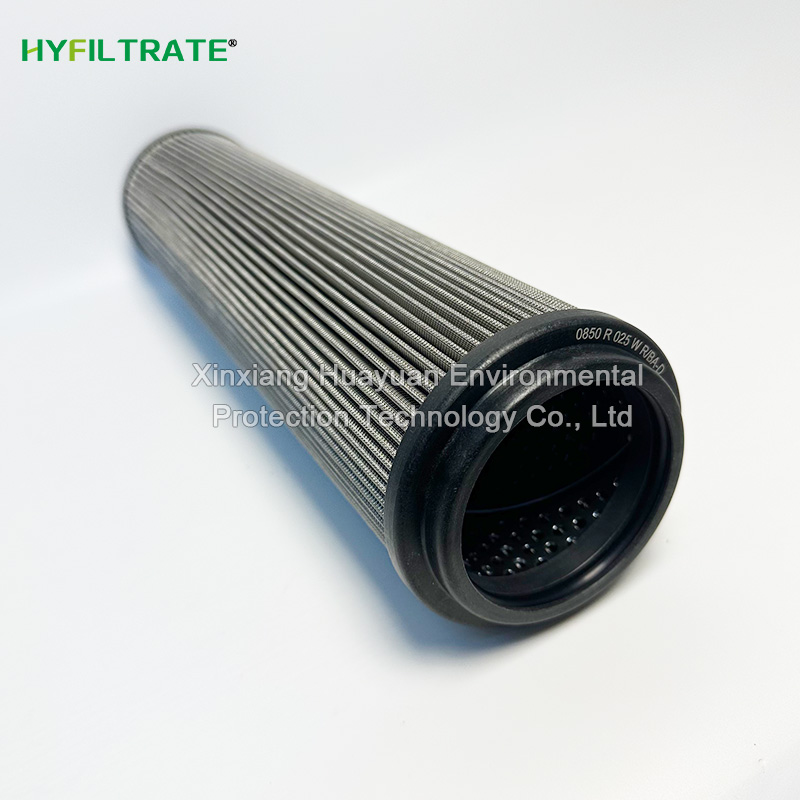

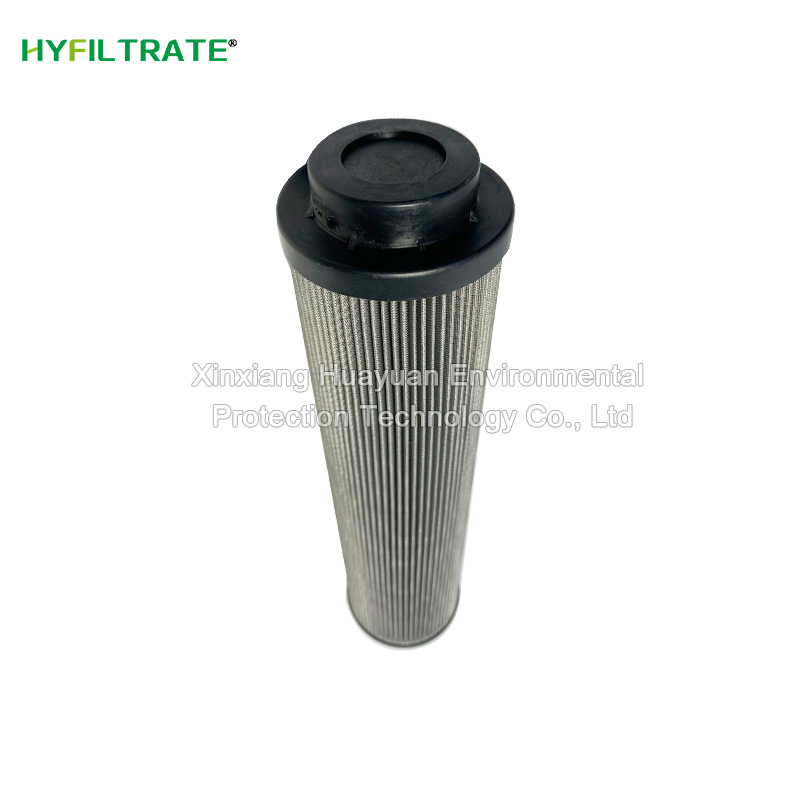

Replacing HYDA Filter Element With 0850r020bn4hc

0850r020bn4hc filter element is widely used in metallurgical industry, petrochemical industry, textile industry and so on. It is used for filtration of hydraulic system of rolling mill and continuous casting machine and filtration of various lubricating equipment, which makes hedek filter element ensure the normal operation of hydraulic system.0850r020bn4hc filter element is used in the oil suction circuit of the hydraulic system to remove the metal powder and other impurities produced by the we

Basic Barameters

Brand: HUAYUANFILTER

Model: 0850r020bn4hc

Filtration accuracy: 10um

External diameter: 114mm

Length: 412mm

Filter media: general hydraulic oil, phosphate hydraulic oil, emulsion, water-glycol;

Filter element type: Folding filter element

Country of origin: Xinxiang, Henan, China

jack@cnxyfilter.com

Features Parameters Related

0850r020bn4hc Filter Element is widely used in metallurgical industry, petrochemical industry, textile industry and so on. It is used for filtration of hydraulic system of rolling mill and continuous casting machine and filtration of various lubricating equipment, which makes hedek filter element ensure the normal operation of hydraulic system.

0850r020bn4hc filter element is used in the oil suction circuit of the hydraulic system to remove the metal powder and other impurities produced by the wear of various components during the operation of the hydraulic system, so that the oil is clean and pure

Technical Parameter

Filter element model: 0850R020BN4HC

Filter material: imported glass fiber

Installation position: oil return line

Filtration accuracy: 20um

Opening pressure: 1.6Mpa

Filter element type: folded filter element

Purpose of filter element: removing impurities from oil

Applicable object: hydraulic oil

Installation location: Filter Housing

Bypass valve installed: Yes

Related models

0850R003BNHC 0850R005BNHC 0850R010BNHC 0850R020BNHC 0850R003BN3HC 0850R005BN3HC 0850R010BN3HC 0850R020BN3HC 0850R003BN4HC 0850R005BN4HC 0850R010BN4HC 0850R020BN4HC 0850R003BNHC 0850R005BNHC 0850R010BNHC 0850R020BNHC 0850R020P
