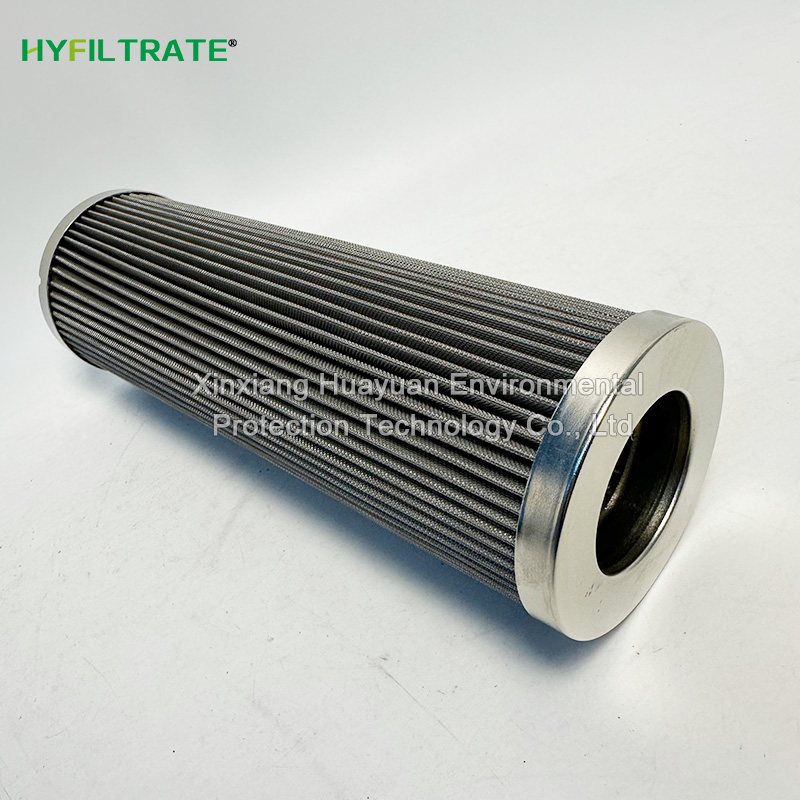

Replaces PI 8330 DRG 40 MAHLE oil filter element

Replacing PI 8330 DRG 40 MAHLE oil filter element uses metal mesh filter material, with high filtration accuracy and large filtration area, Wire meshelements are used in hydraulic and lubricating oil filtration as suction filters or coarse filters, for highly viscous media and as safety filters in cooling lubricant filtration. As surface filters, wire cloth elements have a sharp separation boundary and a lower dirt-holding capacity than depth filters.Filter fineness 10 to 500 µm (absolute)Flow d

Basic Barameters

Brand: HYFILTRATE

Model: PI 8330 DRG 40

Filtration accuracy: 40um

External diameter: 83mm

Length: 254mm

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: Pleated filter element

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

Replacing PI 8330 DRG 40 MAHLE oil Filter Element uses metal mesh filter material, with high filtration accuracy and large filtration area, Wire meshelements are used in hydraulic and lubricating oil filtration as suction filters or coarse filters, for highly viscous media and as safety filters in cooling lubricant filtration. As surface filters, wire cloth elements have a sharp separation boundary and a lower dirt-holding capacity than depth filters.

Filter fineness 10 to 500 µm (absolute)

Flow direction from outside to inside

End discs and support tubes corrosion-protected, chrome VI free

Collapse pressure resistance up to max. 210 bar

Temperature application range -10 °C to +120 °C
