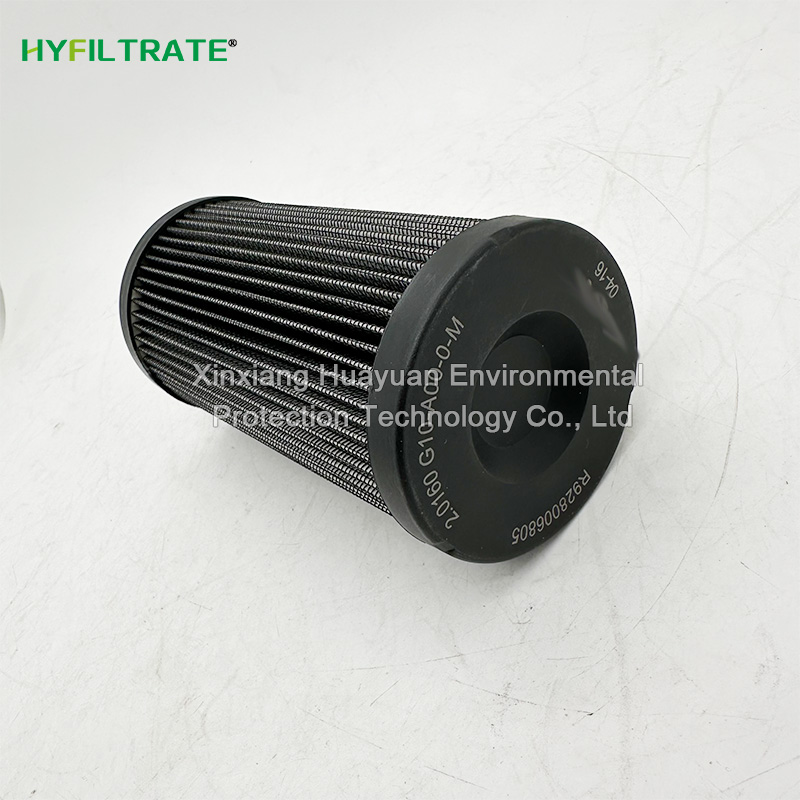

Brand: HYFILTRATE
Model: G10-A00-0-M
Filtration accuracy: 1-40μm
External diameter: 80mm
Length: 153mm
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China
-Replace Rexroth G10-A00-0-M hydraulic Filter Element The filter layer adopts composite glass fiber filter material or stainless steel woven mesh with high filtration efficiency, and the filtration accuracy can reach 1 μ -100 μ. It can effectively filter out solid particles and gel like substances in hydraulic oil or lubricating oil, and can make the oil cleanliness reach ISO 10/6/4 (ISO 4406) standard.
-Strong pollutant holding capacity: Adopting a multi-layer structure and folding design, the filtration area is expanded, the pollutant holding capacity is increased, and the initial pressure difference is low, which can maintain good filtration performance for a long time and reduce replacement frequency.
-Good pressure resistance: Made of single-layer or multi-layer metal mesh and filter material, with high concentricity and high pressure resistance, it can operate stably under working pressures of 21bar-210bar.
-Wide application range: It can adapt to working temperatures of -30 ℃ -110 ℃ and can be used for various media such as petroleum based hydraulic oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc. The sealing material is usually fluorine rubber ring or nitrile rubber, with good compatibility.
-Easy installation: There are multiple models and specifications with standard dimensions, high concentricity and good straightness. Installation and replacement are convenient and fast, and can be installed in filters and oil filters in hydraulic systems.
-Reasonable structural design: Some low-pressure series filter elements are equipped with bypass valves. When the filter element is not replaced in time and becomes blocked, the bypass valve can automatically open to ensure the normal operation of the system and avoid affecting the hydraulic system due to filter element blockage.
The Replace PALL HC9801FDT4Z hydraulic oil filter element has good filtering performance, and can exhibit uniform surface filtering performance for filter sizes ranging from 2 to 200 μ m. The Replace Rexroth G10-A00-0-M hydraulic filter element has uniform surface filtering performance. It has excellent corrosion resistance, heat resistance, pressure resistance, and wear resistance, suitable for low and high temperature environments, and can be reused after cleaning without replacement. The stainless steel filter element has uniform pores, precise filtration accuracy, large flow rate per unit area, and long service life.
-Filtering accuracy: up to 1 μ -100 μ.
-Working medium: general hydraulic oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc.
-Work pressure: 21bar-210bar.
-Working temperature: -30 ℃ -110 ℃.
-Material: The filter material includes fiberglass filter paper, synthetic fiber filter paper, wood pulp filter paper, etc. Stainless steel woven mesh, sintered mesh, etc. The sealing material is usually fluorine rubber ring or nitrile rubber.
-Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa, etc.
-Size parameters: intake pipe diameter 60mm, connecting thread 36, inner diameter 40mm, external dimensions 60mm, outlet pipe diameter 40mm, sealing ring size 20mm.
-Maximum allowable pressure difference: 30 bar (435 psi) with bypass valve, 330 bar (4786 psi) without bypass valve and special adhesive.
