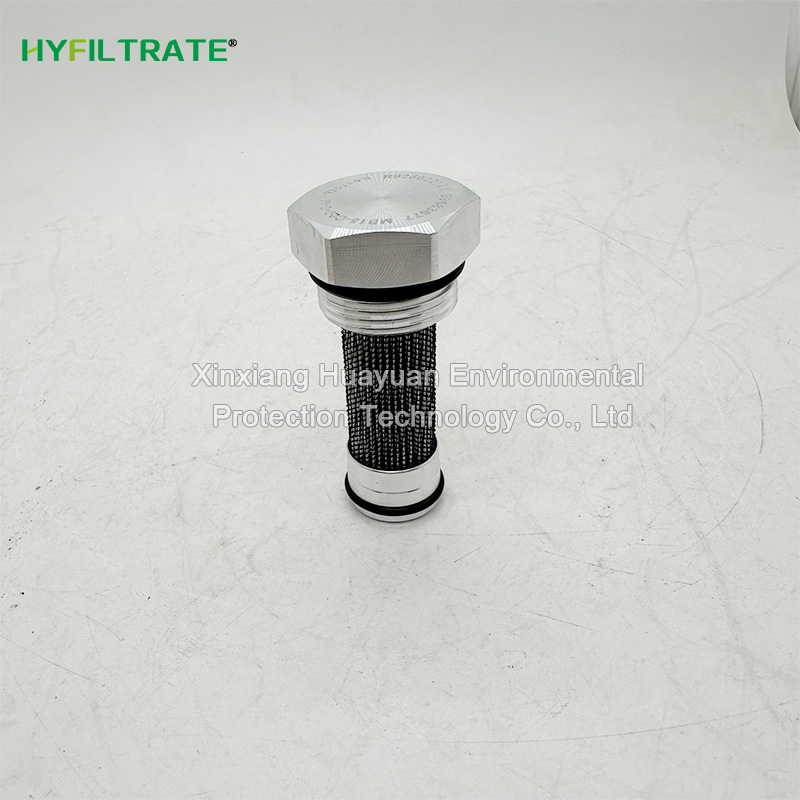

Replace BOSCH REXROTH R92802276 hydraulic oil filter element

Replace BOSCH REXROTH R92802276 hydraulic oil filter element It has the advantages of strong pollutant absorption capacity and small initial pressure difference, and some filter elements can be cleaned and reused. And due to the use of zinc free partsThe R92802276 filter cartridge has the following characteristics: -High filtration efficiency: Using specially designed high-efficiency filtering materials such as glass fiber material, it can filter very small particles with a filtration accuracy o


Basic Barameters

Brand: HYFILTRATE

Model: R92802276

Filtration accuracy: 1-40μm

External diameter: 25mm

Length: 85mm

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

Replace BOSCH REXROTH R92802276 hydraulic oil Filter Element It has the advantages of strong pollutant absorption capacity and small initial pressure difference, and some filter elements can be cleaned and reused. And due to the use of zinc free parts

The R92802276 filter cartridge has the following characteristics:



-High filtration efficiency: Using specially designed high-efficiency filtering materials such as glass fiber material, it can filter very small particles with a filtration accuracy of up to micrometer level, effectively removing impurities in hydraulic oil and ensuring oil cleanliness.



-Strong pollutant holding capacity: It can maintain high pollutant holding capacity within a large pressure difference range, accommodate more impurities, extend replacement cycles, and reduce maintenance frequency.



-High compressive strength: The filter element has high anti collapse strength, can withstand high pressure during system operation, is not easily damaged, and can work stably under pressures up to 330 bar.



-Easy maintenance: Equipped with a mechanical visual maintenance indicator with memory function by default, it can intuitively display the usage status of the filter element, making it easy to timely understand whether the filter element needs to be replaced. Various electronic switch components can also be optionally selected to achieve more intelligent maintenance prompts, with modular design features.



-Flexible structural design: The type with a bypass valve can be selected. When the filter element is clogged and the pressure difference reaches a certain level, the bypass valve opens to ensure the normal operation of the system. Some models can also be equipped with measurement interfaces for easy monitoring of system related parameters.



-Easy Installation: Suitable for pipeline installation, it can be directly installed in hydraulic system pipelines without occupying too much space and can be easily integrated into existing systems. Composition, does not form zinc soap, suitable for various media environments such as water-based liquids and synthetic oils.


Technical Parameter

model:R92802276

-Specification standards: Complies with DIN 24550, with a size range between 0040 and 1000, and also complies with Rexroth standards 0003 to 0270.



-Compressive strength: up to 330 bar (4786 psi).



-Filtering accuracy: The accuracy level is 1 to 1500 μ m, and different precision filter cartridges can be selected according to specific needs.



-Filter area: up to 4.8m ² (7440in ²).



-Filtering coefficient: When β ₓ (c) ≥ 1000, the filtering effect is good.



-Working temperature: The applicable temperature range is -10 ° C to 100 ° C (14 ° F to 212 ° F).


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
