Brand: HYFILTRATE
Model: H-0240-DN-2-003
Filtration accuracy: 1-40μm
External diameter: 90mm
Length: 255mm
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

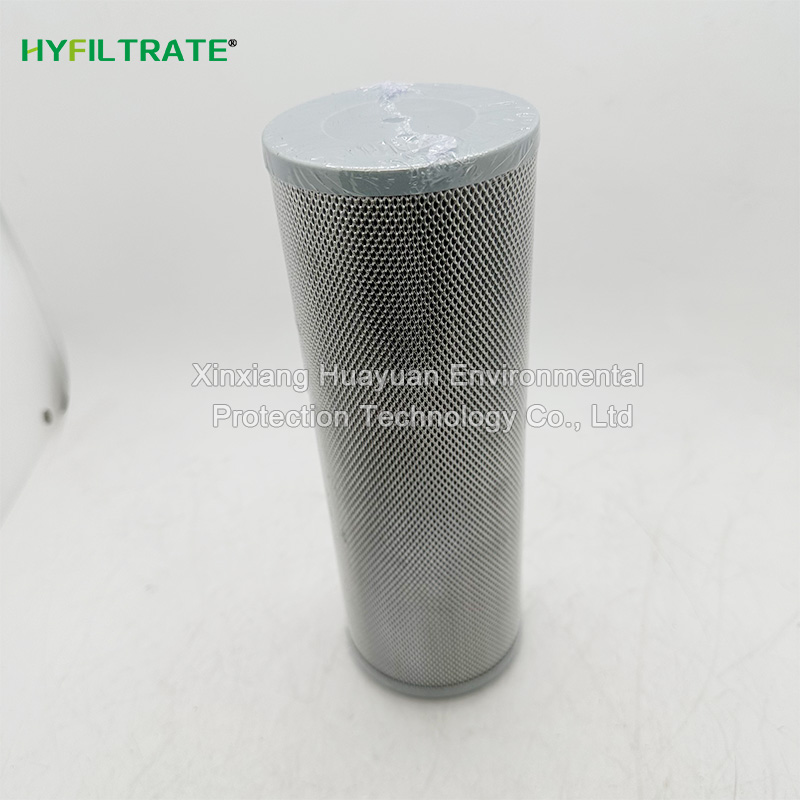

Replacing HYDAC H-0240-DN-2-003 hydraulic oil Filter Element is an industrial filter element made of stainless steel material, which may be used in hydraulic, lubrication and other systems.
This HX-160 × 80W - μ m stainless steel filter cartridge has the following characteristics:
Material characteristics
-Strong corrosion resistance: Made of stainless steel material, it can effectively resist the erosion of various corrosive media, suitable for working environments with corrosive substances, ensuring the service life of the filter element, reducing damage and replacement frequency caused by corrosion.
-High strength: Stainless steel itself has high mechanical strength, and under harsh working conditions such as high pressure, the filter structure is not easily deformed, which can maintain stable filtration performance.
filterability
-Filtering accuracy optional: Although the specific filtering accuracy values are not clearly shown in the figure, this type of filter cartridge can usually provide different accuracy specifications to meet the requirements of different industrial systems for impurity filtration, effectively intercepting solid particles and impurities of different sizes.
-Good pollutant holding capacity: Reasonable filter structure design enables it to have a certain pollutant holding capacity, which can accommodate more impurities, reduce the trouble of frequent filter element replacement, and lower maintenance costs.
Applicability
-Good universality: It can adapt to various hydraulic, lubrication and other industrial fluid systems, and is widely used in multiple industrial fields such as mechanical manufacturing, chemical industry, metallurgy, etc.
-Wide working temperature range: The stainless steel material determines that it can work in a wide temperature range and adapt to temperature changes in different working environments.
HX-160 × 80W - μ m - stainless steel "model
-Filtering accuracy: The "80W - μ m" in the model may be related to the filtering accuracy, and it is speculated that the filtering accuracy may be around 80 μ m. However, the labeling methods of different manufacturers may vary, and the actual accuracy may be customized as needed between 5-100 μ m.
-Nominal flow rate: "160" may represent nominal flow rate. It is speculated that the nominal flow rate of this filter element is 160L/min. Under specific working pressure, it can ensure the passage of 160 liters of medium per minute.
-Work pressure: Typically, industrial filter cartridges made of stainless steel have a working pressure range of 0.3-32MPa. Please refer to the product manual for specific information, which is related to the structural strength of the filter cartridge.
-Material: According to the labeling, the filter element and filter material are made of stainless steel, which may be common stainless steel models such as 304 and 316, and have the characteristics of corrosion resistance and high strength.
-Applicable media: Suitable for various industrial fluid media such as hydraulic oil and lubricating oil, filtering solid particles and other impurities in the media.
-Working temperature: The general working temperature range is around -20 ℃ -120 ℃, and stainless steel material can adapt to a wide temperature range.
