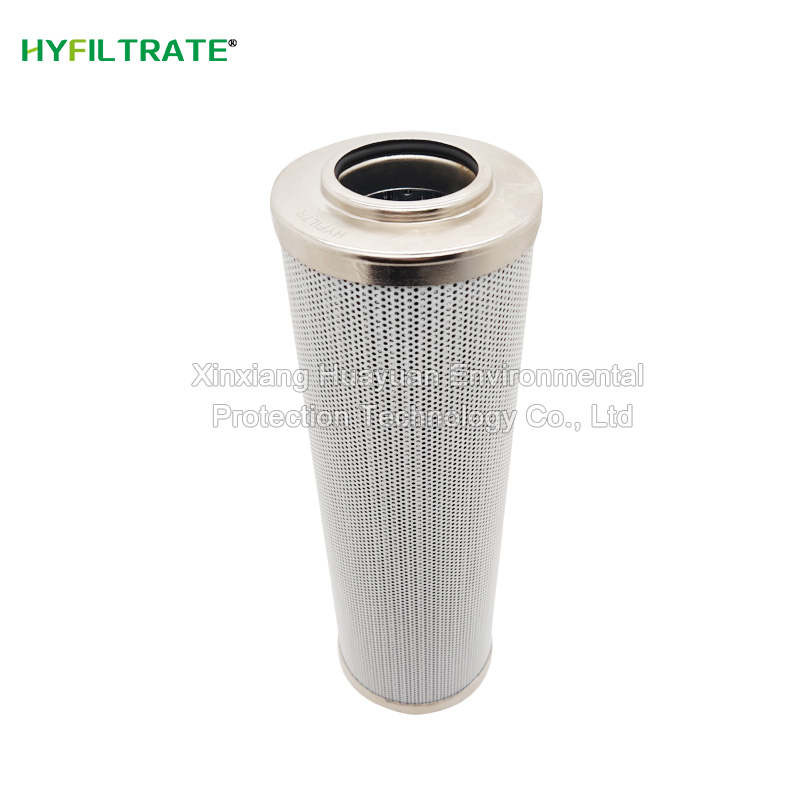

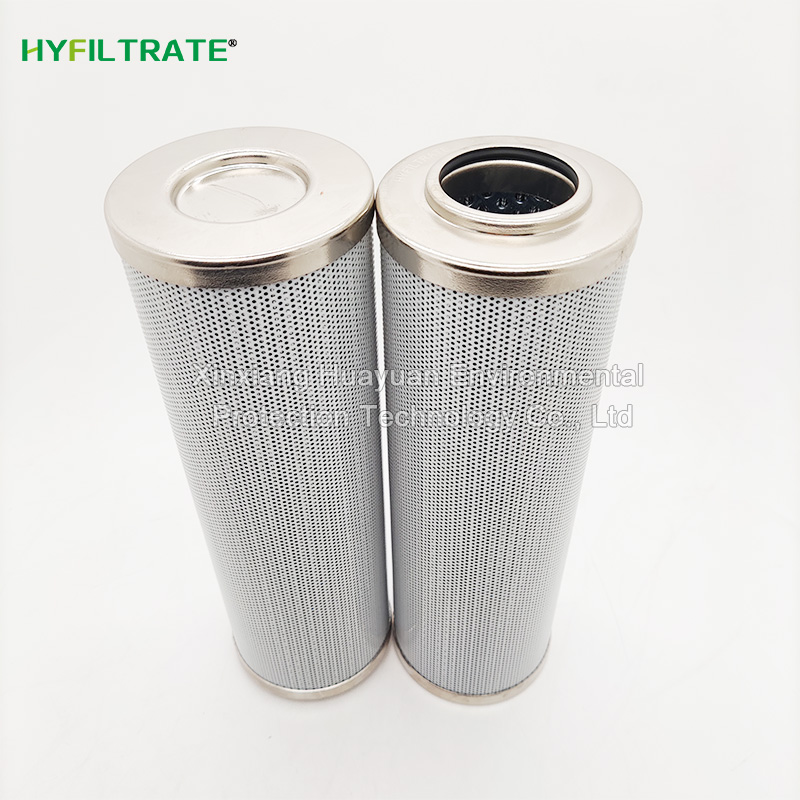

The 0250DN010BN4HC0 μ m Filter Element combines high precision (10 μ m/99% retention rate), high pressure tolerance (21 bar operation/210 bar burst), wide temperature adaptability (-30 ℃~+110 ℃), and the advantages of composite filter materials, making it an ideal choice for hydraulic system oil return filtration.

The characteristics of 0250DN010BN4HC0 μ m filter cartridge are as follows:

1、 Precision filtration performance

10 μ m high precision: using imported fiberglass/stainless steel composite filter material, with a retention rate of ≥ 99% for particles ≥ 10 μ m and a filtration ratio β ≥ 100 (ISO 16889 standard)

Uniform surface filtration: The pore distribution of the filter material is uniform, which can stably treat pollutants with a particle size range of 2-200 μ m

2、 Adaptability to extreme working conditions

Strong pressure resistance: working pressure of 21 bar, burst pressure up to 210 bar, excellent axial stiffness, can withstand a pressure difference of 21 kg/cm ² without deformation

Wide temperature range compatibility: Operating temperature range covers -30 ℃ to+110 ℃, suitable for extremely cold or high temperature hydraulic systems

3、 Long lasting and durable design

Ripple filter layer structure: increases filtration area, reduces pressure loss, and extends service life to over 2000 hours

External inlet and internal outlet channels: Pollutants are trapped outside the filter element to avoid internal blockage and facilitate maintenance

4、 Wide media compatibility

Suitable for hydraulic oil, phosphate ester oil, water ethylene glycol and other media, resistant to chemical corrosion (pH 1-14)

5、 Industrial grade reliability

Ensure safe operation in high-pressure environments through ISO 2941 fracture resistance and ISO 2942 structural integrity certification

Internal support skeleton design, strong enough to withstand mechanical impacts under complex working conditions

Note: This type of filter element has been widely used in hydraulic system return oil filtration in metallurgy, power, shipbuilding and other fields
