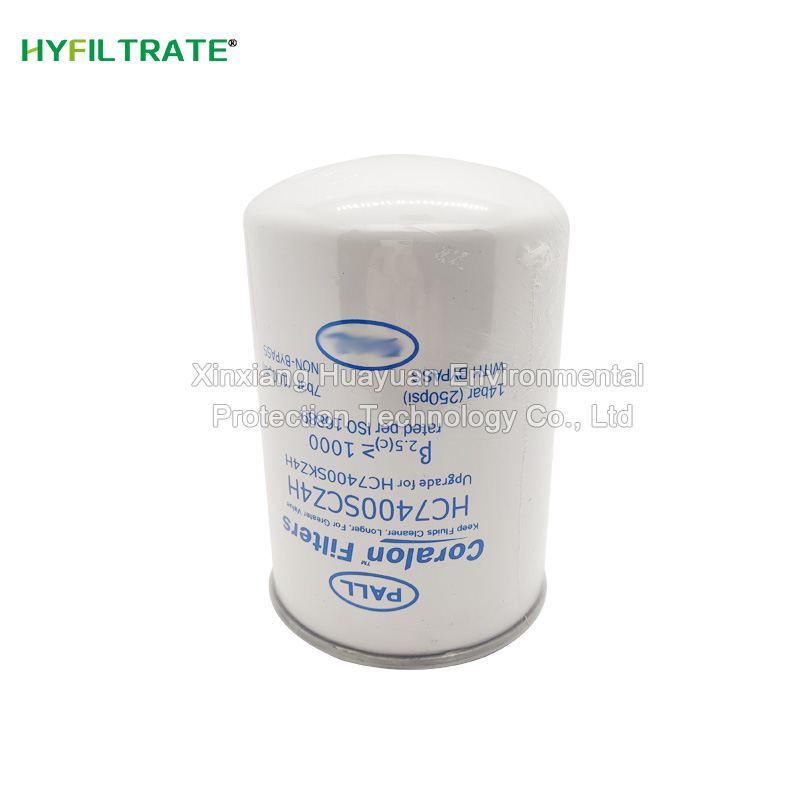

The HC7400SCZ4H hydraulic oil Filter Element has a filtration accuracy of 5 microns, high filtration efficiency, and can withstand a pressure difference of 6MPa and a high temperature of 200 ℃. It has a wide working pressure range, a large filter material capacity, low pressure loss, good chemical compatibility, long service life, and may be equipped with special protective and convenient functions such as bypass valves, self sealing valves, or magnetic devices.

The characteristics of HC7400SCZ4H hydraulic Oil Filter Element are as follows:

High filtration efficiency: The filtration accuracy reaches 5 microns, and the filtration efficiency can reach 99%. It can efficiently filter out particles and rubber impurities in hydraulic oil, effectively ensuring the cleanliness of the hydraulic system and reducing component wear and failure.

Stable working performance: It can withstand a maximum pressure difference of 6MPa, with a working pressure range of 10-210bar and a maximum temperature tolerance of 200 ℃. It can work stably in complex high-pressure and high-temperature hydraulic conditions.

Small pressure loss: With the help of high-quality filter materials and reasonable structural design, it ensures filtration efficiency while minimizing pressure loss, which can avoid excessive impact on the normal operation of the hydraulic system and help reduce system energy consumption.

Large pollutant carrying capacity: The filter material adopts a pleated design, which expands the filtration area by optimizing the pleat height and number. Some parts also use a porous gradient pore structure, where the upstream coarse pore size can capture large particles and the downstream fine pore size can capture small particles, thus accommodating more pollutants.

Long service life: Made of high-quality glass fiber filter material and metal mesh, it has high mechanical strength, excellent corrosion resistance, and can work reliably in harsh environments for a long time, extending the replacement cycle.

Good compatibility: It has good compatibility with most common hydraulic oils and can be adapted to hydraulic systems of various equipment such as construction machinery, hydraulic presses, ships, etc.

Compliant with industry standards: Its structural integrity, material compatibility, flow fatigue characteristics, etc. often meet the requirements of relevant industry standards such as ISO 2943 and ISO 3724.
