Brand: HYFILTRATE
Model: HQ25.600.12Z
Filtration accuracy: 1-50μm
External diameter: 92mm
Length: 102mm
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

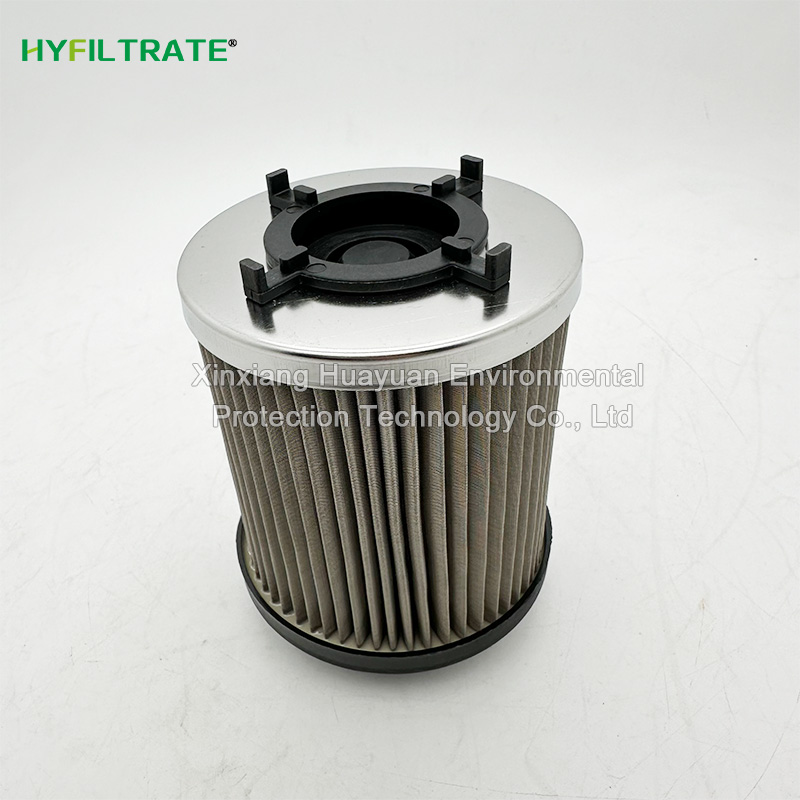

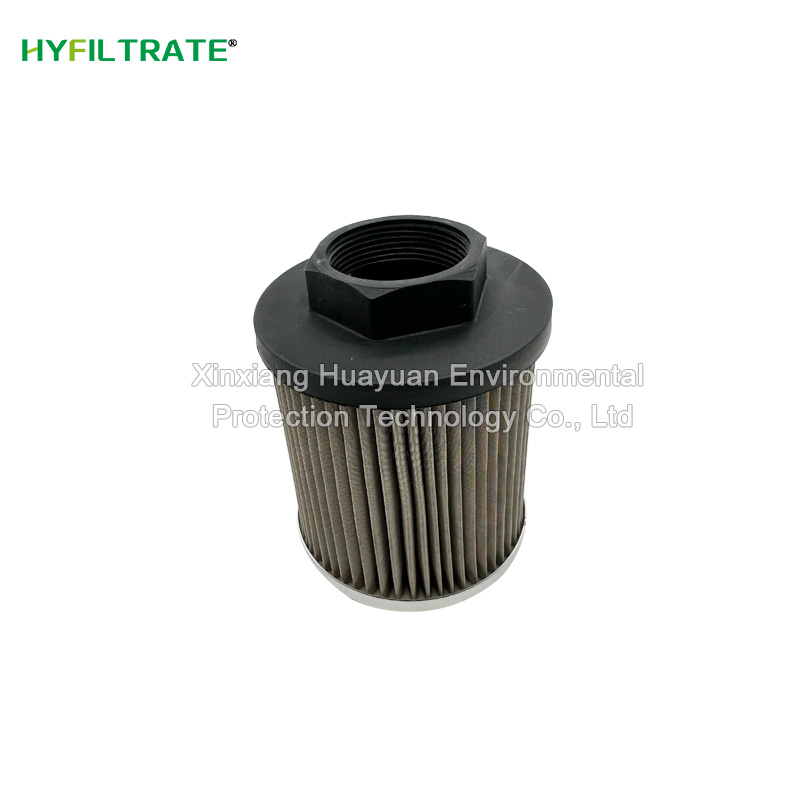

HQ25.600.12Z Filter Element adopts high-quality 304 stainless steel folding mesh filter material, with two specifications of filtration accuracy of 25 microns and 50 microns. Adopting a quick connect installation method, it facilitates users' daily maintenance of the filter. This filter element is suitable for filtering media such as hydraulic oil, lubricating oil, water, and ethylene glycol. It can effectively filter impurities such as dust, iron filings, and adhesive substances in oil.
Structure and Process
Ripple fold design: The filter layer usually adopts a corrugated (pleated) structure to increase the filtering area, and the pleated height generally does not exceed 20 millimeters.
Material and Strength: The main material is mostly stainless steel, which has high coaxiality, strong compressive strength (conventional pressure difference is 0.35-0.4MPa, special filter can withstand high pressure difference of 32-42MPa), and high temperature resistance (up to 135 ℃).
performance parameters
Filtering accuracy: According to ISO standards, it is divided into three accuracy levels: high, medium, and low. Among them, 2-5 microns are high accuracy, 10-15 microns are medium accuracy, and 15-25 microns are low accuracy.
Flow characteristics: It needs to meet the requirements of smooth oil flow and low flow resistance.
