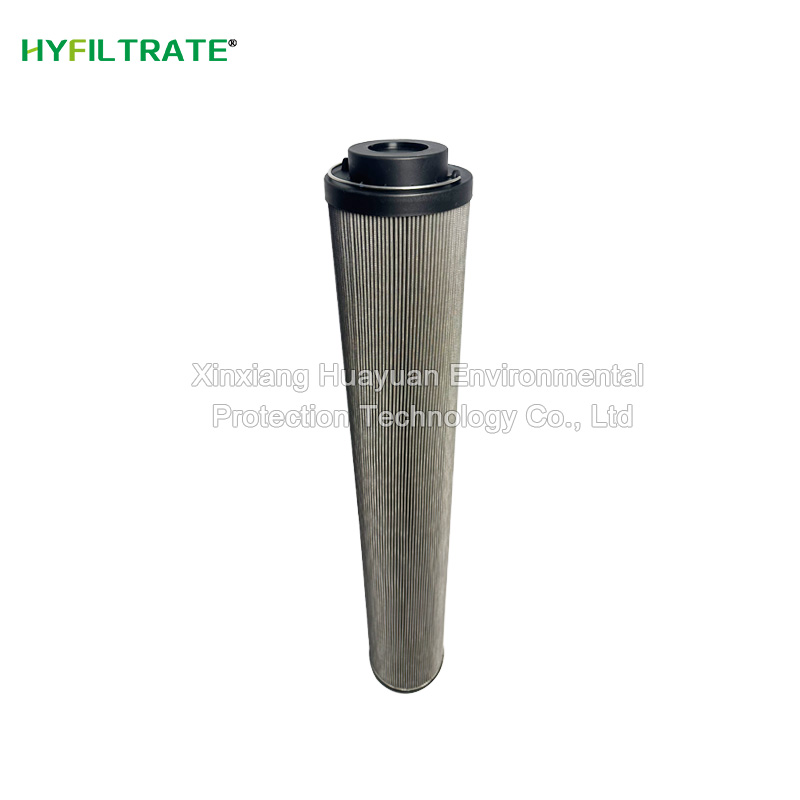

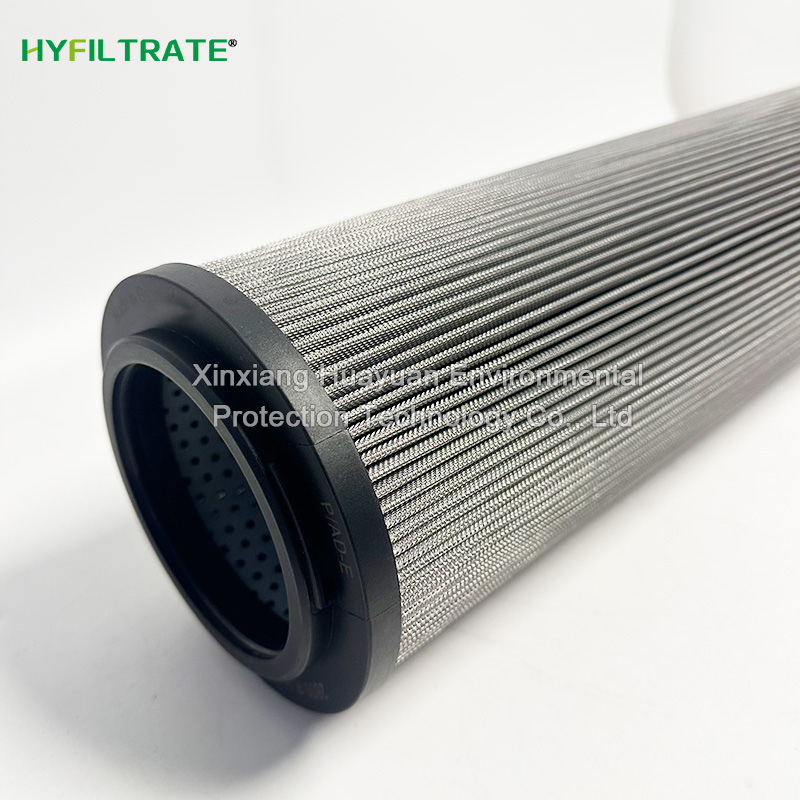

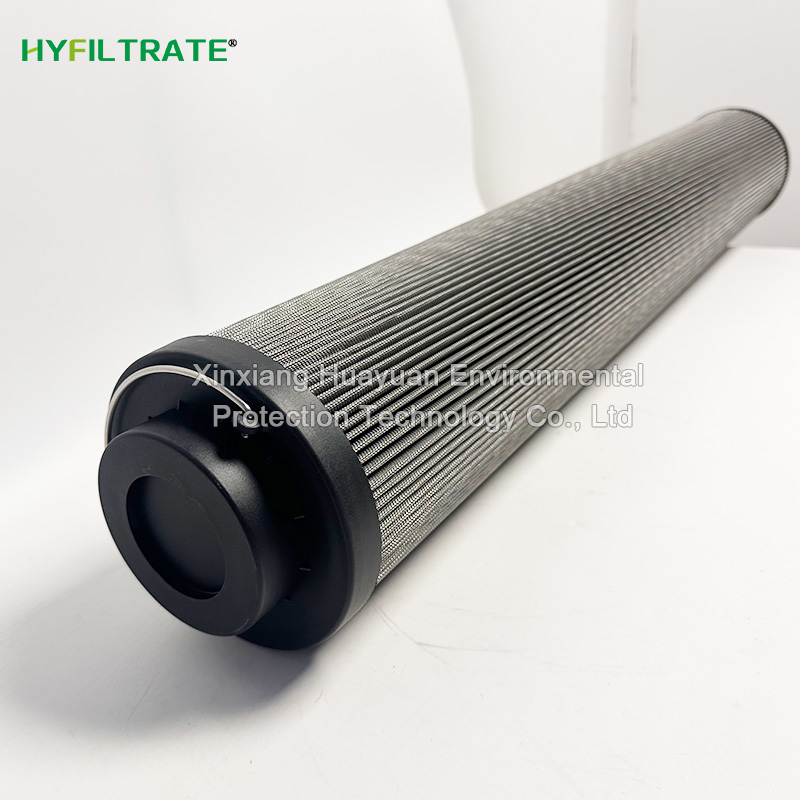

2600R025W/HC 304683 replaces HYDAC Filter Element with 304 stainless steel wire mesh folding filter material, with a filtration accuracy of 25 microns and a filter outer diameter of 143mm. The end cap is equipped with a bypass valve, which is used in the hydraulic system's oil circuit to remove metal powder and other mechanical impurities from the wear of various components in the hydraulic system, keeping the oil circuit clean and extending the service life of the hydraulic system; The low-pressure series filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can automatically open to ensure the normal operation of the system.

Hydraulic Oil Filter Element for oil suction pipeline: Installing an oil suction filter element in the oil suction pipeline (oil tank - hydraulic pump inlet) or directly in the oil tank is a necessary measure to protect the hydraulic pump. Its accuracy is generally 100-180 μ m, depending on the pump's self-priming ability. Excessive flow resistance can cause cavitation of the hydraulic pump.

Pressure pipeline hydraulic oil filter element: The pressure pipeline oil filter element not only protects its downstream components, but also serves as the main oil filter to ensure the degree of system oil pollution. Through its efficient purification of the oil, it also provides good protection for the hydraulic pump. The filtration accuracy is 5-10 μ m, and the filter is subjected to high pressure and vibration. The allowable pressure difference of the pressure pipeline oil filter element ranges from 0.3 to 0.7 MPa according to different pressure levels. As a pressure pipeline oil filter for ground equipment, considering cost and installation space, the larger the capacity, the greater the capability.
