Brand: HYFILTRATE
Model: 01. NL250.10 API.30. E.V.VA 338460
Filtration accuracy: 30um
External diameter: 78mm
Length: 249MM
Filter media: Hydraulic oil, lubricating oil, glycol, water
Filter element type: Pleated filter element
Country of origin: China

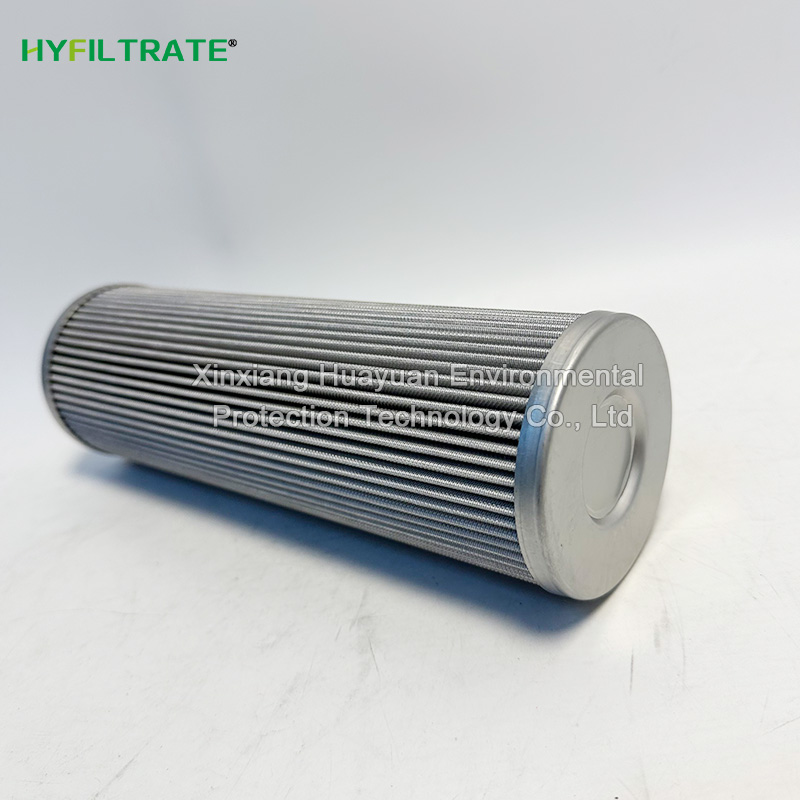

01.NL250.10API.30.E.V.VA 338460 replaces EATON hydraulic Filter Element with 304 stainless steel folded filter material, with a filtration accuracy of 10 microns and the characteristic of high filtration accuracy and long service life. Can be used for filtering and removing impurities from hydraulic oil and lubricating oil.
Typical application scenarios
✔ Hydraulic system of construction machinery (excavator/loader)
✔ Wind turbine gearbox lubricating oil circulation filtration
✔ High pressure oil circuit protection for injection molding machine
✔ Steel mill hydraulic station
Catalog Number
338460
Model Code
01.NL250.10API.E.V.VA
Product Length/Depth
249.1 mm
Product Diameter
80 mm
Product Weight
0.95 kg
Filter element type
In-line filter elements (DIN 24550-3)
Filter fineness
10 API
Filter media type
Glass fiber fleece (API)
Sealing material
Viton
Nominal size
250
