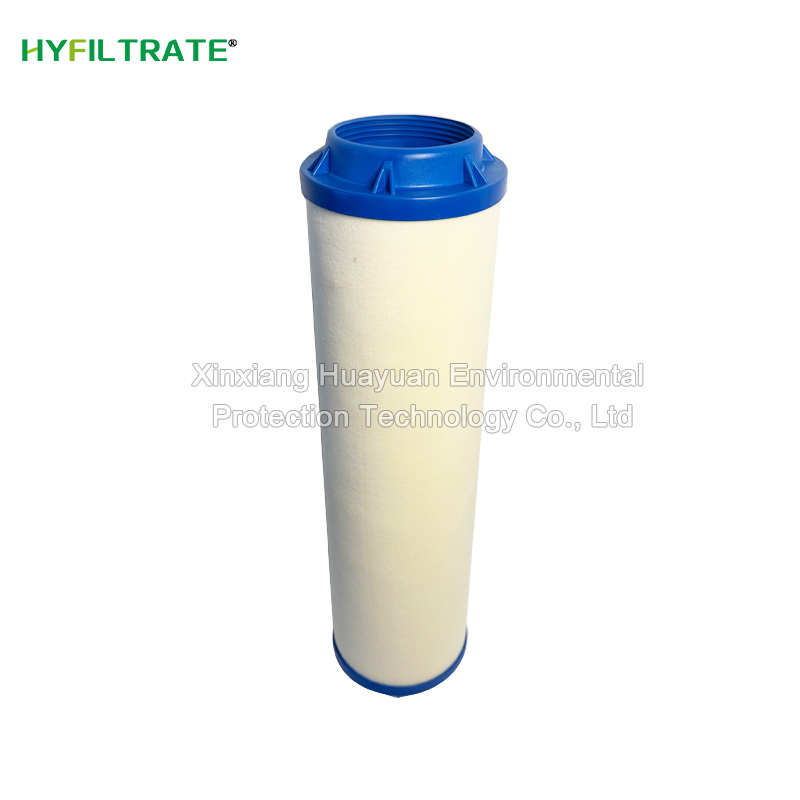

CA Model 3 coalescer cartridges offer the finest performance available. This standard line fo high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from various hydrocarbons and liquids . The cartridges are widely used in petroleum buld storage terminals, turbine fuels, process industries, refineries, marinas, loading racks and many other industrial applications .

Built for balanced fluid flow-thru and structural strength, each CA Model 3 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a treated, perforated metal center tube - all encased in an outer sock material.

Coalescer Filter Element CA11-3 CA14-3 CA22-3 CA28-3 CA33-3 CA38-3 CA43-3 CA56-3

Standard design features.

Multi-layered media for increased solids holding capacity.

Solid removal: 0.3 micron.

Removes water down to less than 5 ppm.

Balanced cartridge flow characteristics.

Maximum recommended operating temperature: 240℉（115℃).

Maximum differential pressure: 75 psi (5.25 kg/cm²).

Flow direction: Inside to out.

pH range from 5 to 9.

Materials.

All metal components coated to protect against corrosion.

Standard gaskets are Buna-N - other materials available on request.
