Brand: HUAYUAN FILTER
Model: EHM15R10A
Filtration accuracy: 1-100um
Outside diameter: 62-65
Inside diameter: 26-30
Total length: 10",20",30",40"
Filter media: Water and air
Filter element type: Water filter

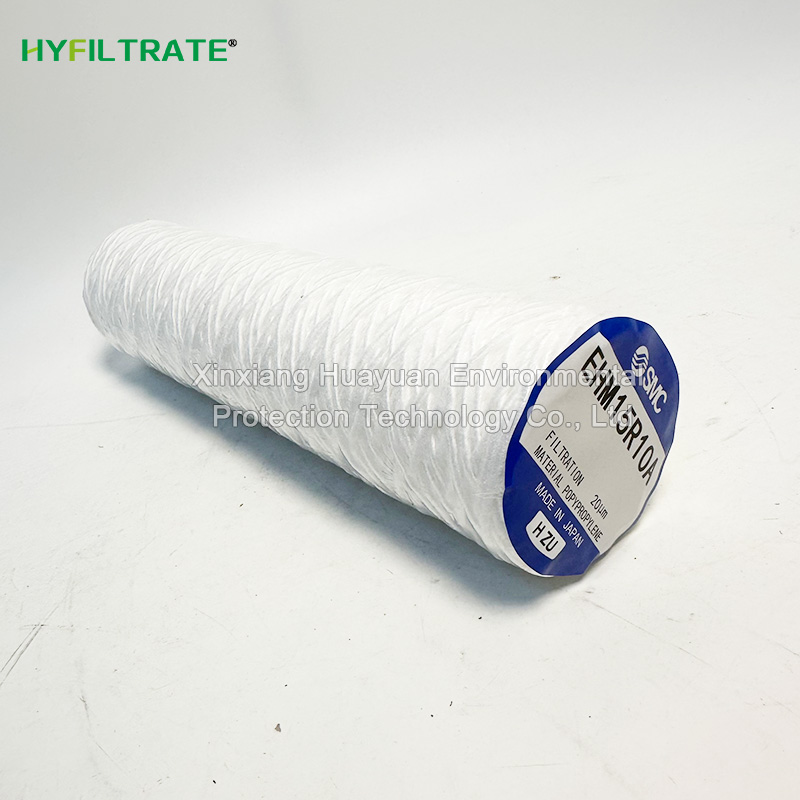

EHM15R10A SMC air compressor wire-wound water filter is a kind of deep filter, which is used for low viscosity and low impurity filtration. The skeleton (polypropylene or stainless steel) is made on the top, and has a honeycomb structure that is sparse outside and dense inside.
A well-wound wound Filter Element can show the filtering effect of a depth filter material. The ideal condition is that it becomes denser and denser from the outside to the inside. Therefore, when winding, the thickness of the wire or the different winding tension must be used. In order to control the density of the filter material, the wound filter element with such a dense inner and outer sparse structure can have the depth effect of the depth filter material, effectively improve the filtration efficiency, and intercept more impurities.
Related models
EHM15R10A Air compressor water removal filter EHM11R10A
Replacement of Japanese SMC filter fiber filter element EHM15R10A/EHM19R20AY/EHM10A
Outer diameter: 62-65mm
Inner diameter: 26-30mm
Filtration precision: 5um, 10um, 20um, 50um
Length: customized
