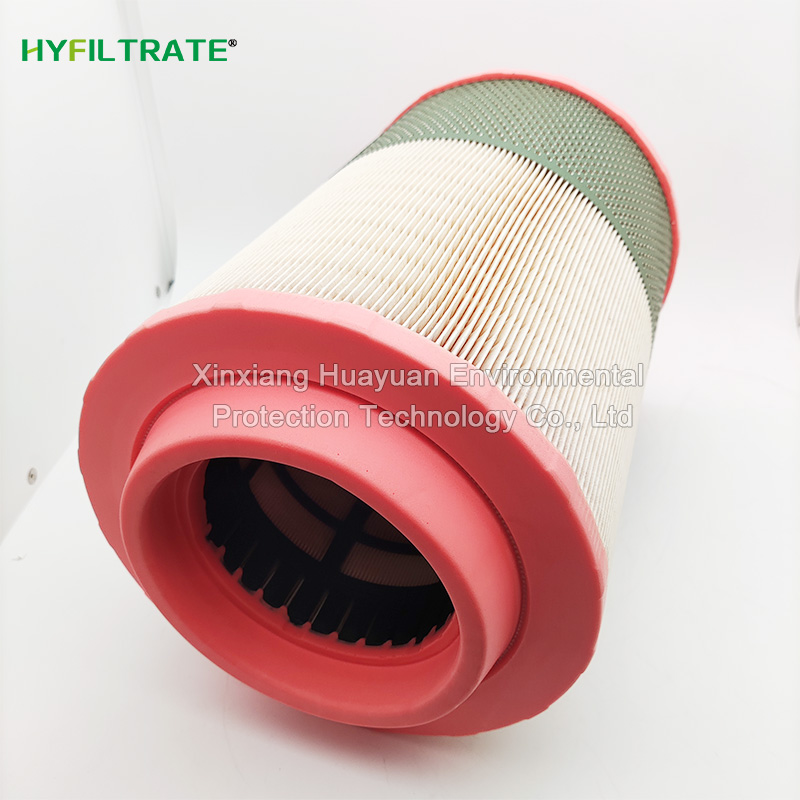

Replacing the Atlas Copco 1622 1855 01 air compressor filter cartridge, high-quality filter paper is used as the core filtering material. The filter paper has been specially processed to have good breathability and efficient filtering ability, which can effectively intercept impurities such as dust, sand particles, and metal debris in the air. The filtration accuracy can reach the micrometer level, ensuring that the air entering the air compressor is clean and pure, providing reliable protection for precision components inside the air compressor, reducing wear, and extending equipment service life.

Excellent filtering performance

High precision filtration: Using high-quality filter materials, it can efficiently intercept dust, sand particles, metal debris and other impurities of 1-5 microns or even smaller, with a filtration efficiency of over 99% for particles of 0.3-1 microns, providing clean air intake for air compressors, effectively protecting internal precision components, reducing wear, and extending equipment life.

Large dust capacity design: The filter paper has many folds and is tightly arranged, increasing the filtration area and having a high dust capacity, which can maintain good filtration effect for a long time, reduce replacement frequency, and lower maintenance costs.

Excellent and durable material

High quality filter material: The selected synthetic fiber or wood pulp fiber filter paper has good breathability, strength, and moisture resistance, and can maintain efficient filtration performance and structural stability under different humidity and airflow impacts.

Sturdy End Cap: The end cap is made of high-strength plastic or metal and has undergone special treatment to provide excellent sealing. It can withstand the pressure and airflow impact during the operation of the air compressor, prevent unfiltered air from entering through the bypass, and is corrosion-resistant and wear-resistant to ensure the service life of the Filter Element.

Strong job stability

Wide adaptability: It can work stably in a wide temperature range of -20 ℃ to+80 ℃, adapt to environmental temperature conditions in different regions and working conditions, and can operate normally in both cold northern and high-temperature industrial environments.

Low pressure drop: The initial pressure drop is small, not exceeding 0.05MPa, which can reduce the intake resistance of the air compressor and lower energy consumption. With the accumulation of impurities during use, the pressure drop changes relatively slowly. It needs to be replaced only when it reaches around 0.15-0.2MPa, ensuring the smoothness of air intake and operational stability of the air compressor.
