Compressor parts oil and gas separator filter element 1613243300

HUAYUANFILTER oil and gas separation filter element 1613243300 adopts high-quality glass fiber, metal mesh inside and outside, high-density glass fiber and gas isolation material in the middle, flange connection with sealing ring, effectively filtering impurities in the compressed gas, ensuring clean gas and liquid, thereby maintaining the life of the machine .1. High filtration efficiency2. Low initial pressure drop3. Low residual oil4. Superb craftsmanship5. Long service lifeModelOriginal P/NE

Basic Barameters

Brand: HUAYUANFILTER

Model: 1613243300

Filtration accuracy: 0.1μm

Country of origin: China

Filter media: Oil, water, air

Filter element type: Pleated filter

Length: 1613243300

jack@cnxyfilter.com

Features Parameters Related

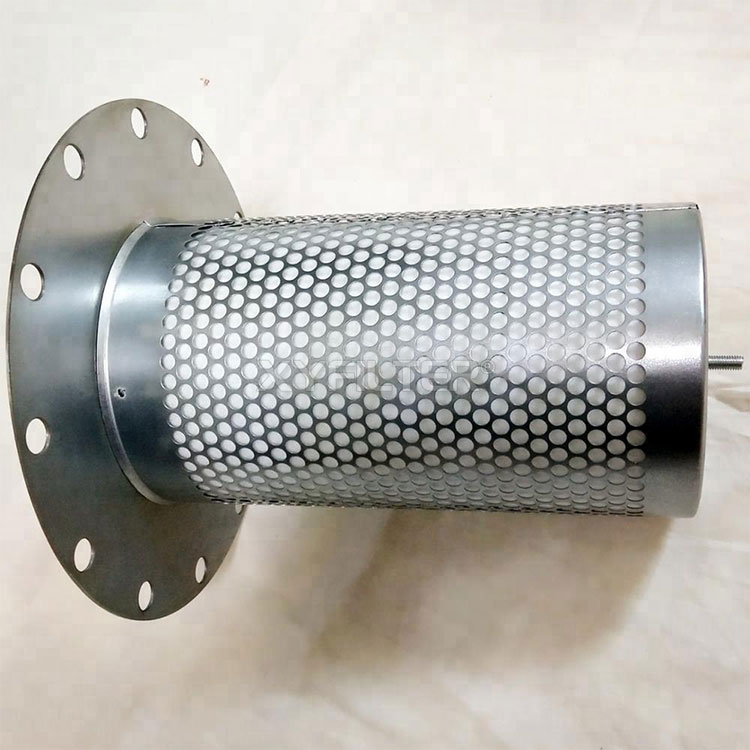

HUAYUANFILTER oil and gas separation Filter Element 1613243300 adopts high-quality glass fiber, metal mesh inside and outside, high-density glass fiber and gas isolation material in the middle, flange connection with sealing ring, effectively filtering impurities in the compressed gas, ensuring clean gas and liquid, thereby maintaining the life of the machine .

1. High filtration efficiency

2. Low initial pressure drop

3. Low residual oil

4. Superb craftsmanship

5. Long service life

Model	Original P/N	External diameter	Height(mm)

		(mm)
GA11/15/18/22	1612386900	220	250
GA11/15/18/22	1613750200	240	175
GA30/37/45	1613243300	300	300
GA37+	1622314000	300	250
GA90/110	1614905400	596	280

1613 2433 00	2252 6313 99	2901 0779 00
1613 8397 02	2901 0003 00	2901 1626 00
1614 9056 00	2901 0213 00	2901 1626 10
1614 9521 00	2901 0343 00	2901 1629 00
1622 0079 00	2901 0343 01	2911 0019 01
1622 0097 00	2901 0566 00
1622 1626 00	2901 0566 02
1622 3656 00	2901 0566 22
