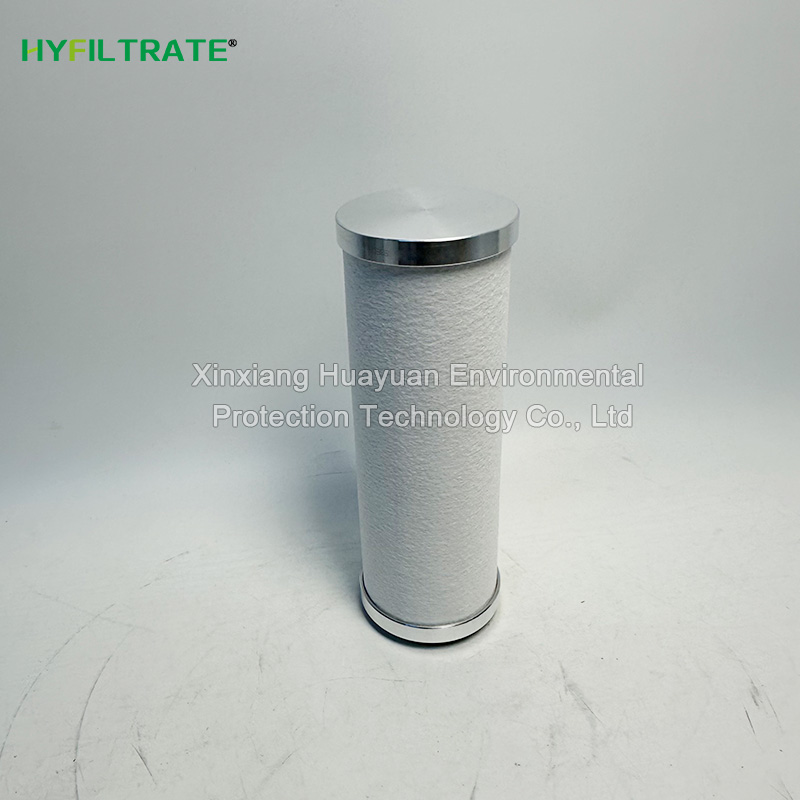

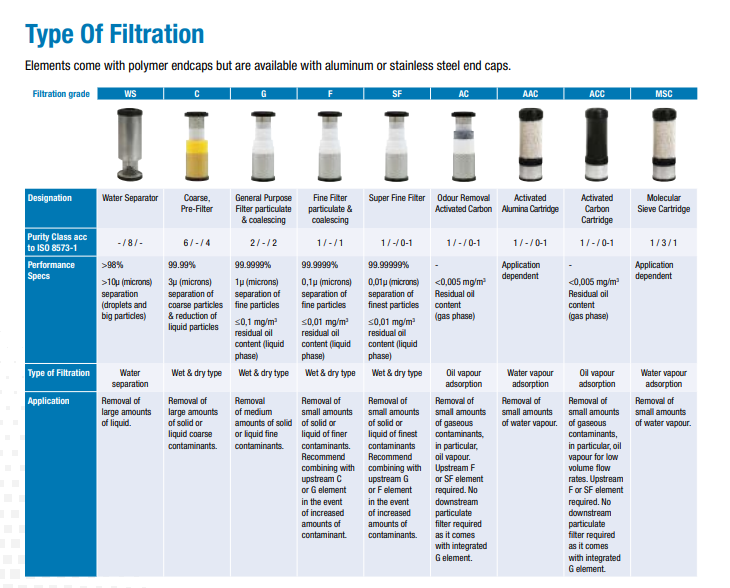

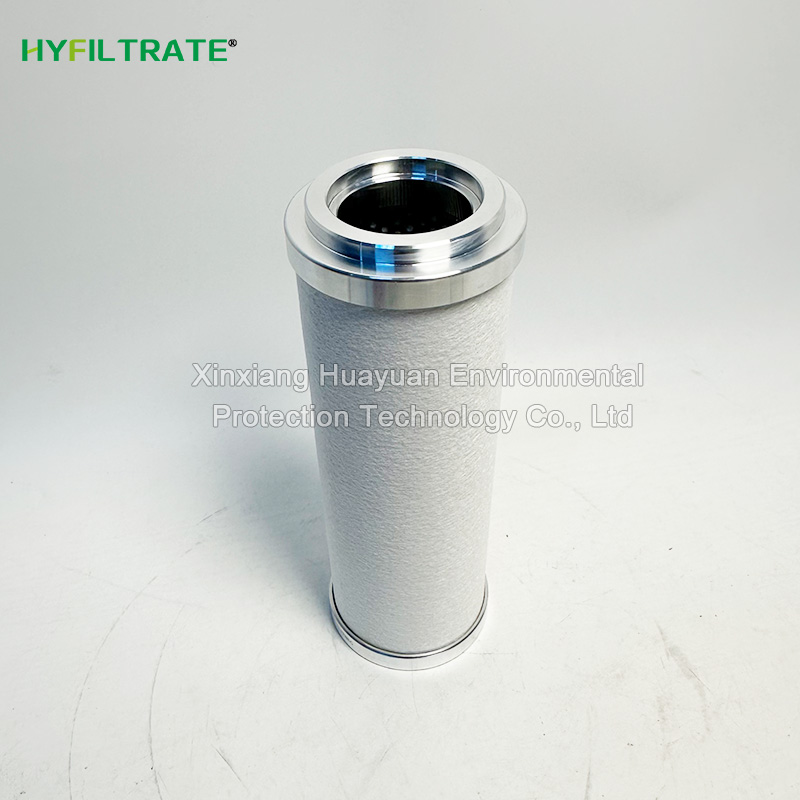

The XE202-SF-A-NEB-XP air compressor Filter Element is composed of multiple layers of fiber filter materials, using hydrophobic and oleophobic fibers and high-strength skeleton to enhance breathability. Some models are equipped with German fine opening sponge to improve oil droplet coalescence efficiency, and anti-corrosion nylon end caps and sealing rings are used to ensure airtightness and durability. The filtration accuracy of this filter element can achieve multi-stage filtration from 0.01 microns to 3 microns.

Analysis of XE202-SF-A-NEB-XP Air Compressor Filter Technology

1、 Core structure design

Composite filter layer structure:

Outer pre filtration layer: Made of German imported oil repellent and hydrophobic fiber material, with a contact angle>110 degrees, it can effectively block particles of 0.5-3 μ m

Main filter layer: gradient density glass fiber cotton, arranged in decreasing order from 5 μ m to 0.3 μ m

Agglomeration layer: Specially treated borosilicate ultrafine fibers achieve 0.01 μ m oil mist filtration

Enhanced system:

316L stainless steel spiral support skeleton

Anti creep polyamide lining tube

A three-dimensional support net with an opening rate of ≥ 85%

2、 Performance parameters

Fluid characteristics:

Initial pressure difference: ≤ 0.02MPa @ 10m ³/min

Saturated dust holding capacity: ≥ 120g (ISO 12500 standard)

Agglomeration efficiency: 98.7% (0.3 μ m oil mist)

3、 Special processing techniques

Surface treatment technology:

Plasma activation treatment (enhancing fiber surface energy)

Nano coating technology (waterproof and oil resistant coating thickness 50-80nm)

End cap sealing system:

Two component injection molded nylon end cap (PA6+GF30)

Fluororubber sealing ring (temperature resistance -40 ℃~150 ℃)

Laser welding process (penetration depth ≥ 1.2mm)

4、 Application adaptability

Adaptability to working conditions:

Temperature range: -30 ℃~80 ℃ (short-term tolerance to 100 ℃)

Maximum working pressure: 1.6MPa (burst pressure 3.2MPa)

Maintenance cycle:

Normal operating conditions: 4000-6000 hours

Heavy pollution condition: forced replacement after 2000 hours

This filter element has passed ISO 8573-1 CLASS 0 certification and is particularly suitable for precision instrument air, food grade compressed air, and other scenarios. Its modular design supports quick replacement, with maintenance time not exceeding 15 minutes, which increases the service life of traditional filter cartridges by more than 40%. Suggest using it in conjunction with a pre cyclone separator to extend the lifespan of the filter element by 30% -50%
