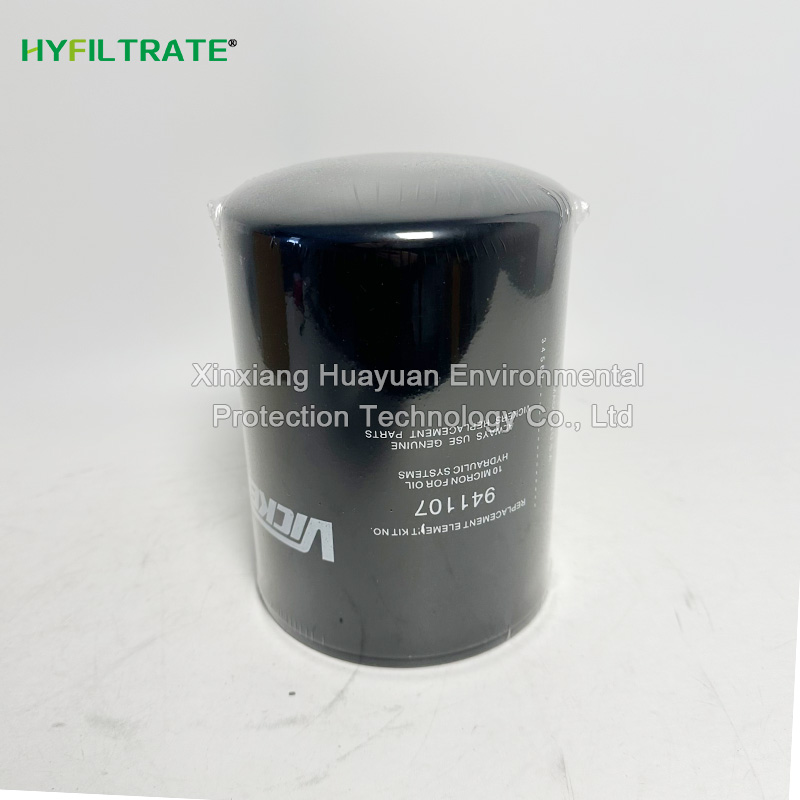

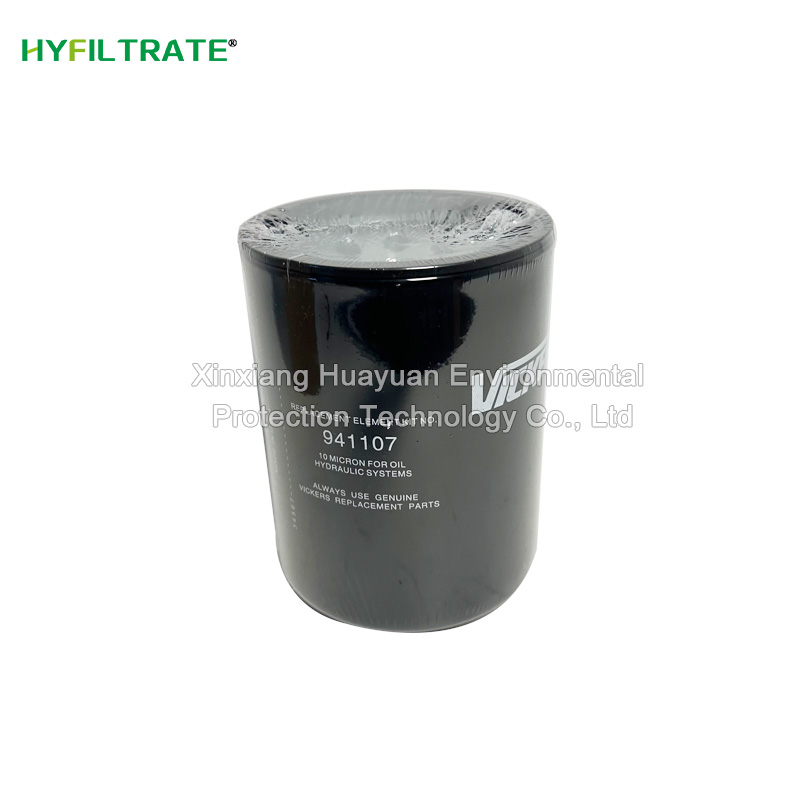

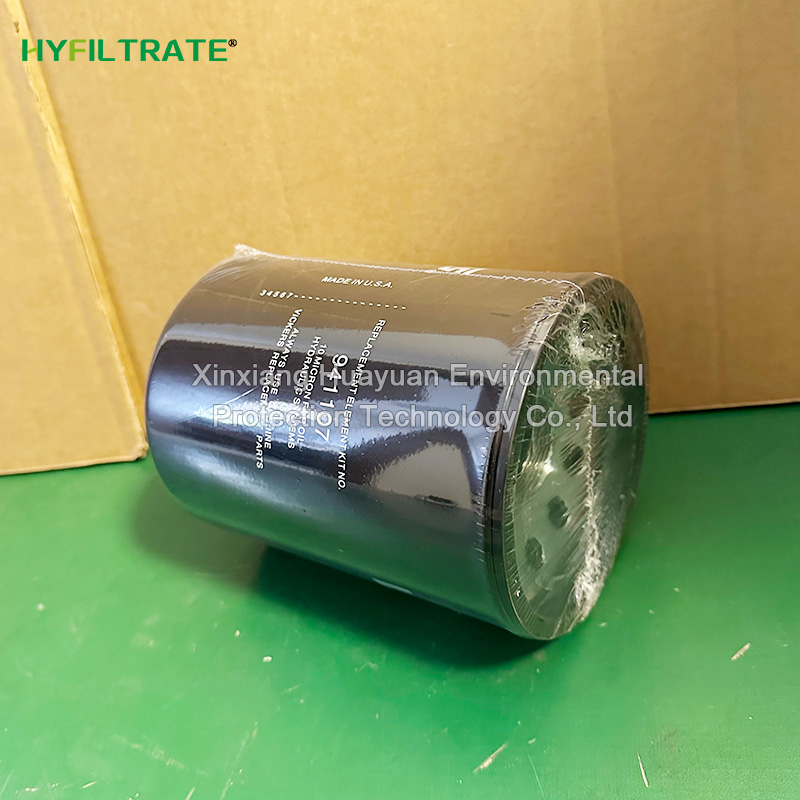

Replace VICKERS 941107 rotary filter cartridge

Replace VICKERS 941107 rotary filter cartridge with an integral rotary design, making installation and replacement easy. It usually has check valves and bypass valves inside, with only one overall sealing point and good sealing performance. The filter element is mostly made of imported filter paper and other materials, which has a good filtering effect on impurities with a diameter of more than 10 microns. It has the characteristics of high filtering efficiency, low flow resistance, and long ser


Basic Barameters

Brand: HYFILTRATE

Model: 941107

Filtration accuracy: 10um

Country of origin: China

Filter media: air, oil

Filter element type: Air compressor precision filter element

Length: 178mm

Replace VICKERS 941107 rotary filter cartridge with an integral rotary design, making installation and replacement easy. It usually has check valves and bypass valves inside, with only one overall sealing point and good sealing performance. The Filter Element is mostly made of imported filter paper and other materials, which has a good filtering effect on impurities with a diameter of more than 10 microns. It has the characteristics of high filtering efficiency, low flow resistance, and long service life


941107 rotary filter is mainly used in hydraulic systems, lubrication systems, and engine circuits to efficiently control pollution levels.

Its specific application scenarios include cooling circuits, lubricating oil systems, power transmission systems, compressors, static hydraulic oil pumps, and fuel transportation, suitable for industries such as power generation, agriculture, oil and gas, construction engineering, forestry, mining, and material handling.

Rotary filters are suitable for various mineral oils (such as hydraulic oil and lubricating oil), fuels, emulsions, ethylene glycol aqueous solutions, and synthetic fluids.


Technical Parameter

OD Top: 5.06

OD Bottom: 5.06

ID: -

Length: 6.9

Thread size: 1.5-16

End cap: corrosion-resistant steel

Central pipe: corrosion-resistant steel

Media: Cellulose

Seal: Nitrile rubber

Bypass setting:-

Collapse level: 100 pounds per square inch

Filtering level: Bx=200 Bx [c]=1000
