Brand: HUAYUANFILTER
Model: UC-MF-1060N
Country of origin: China

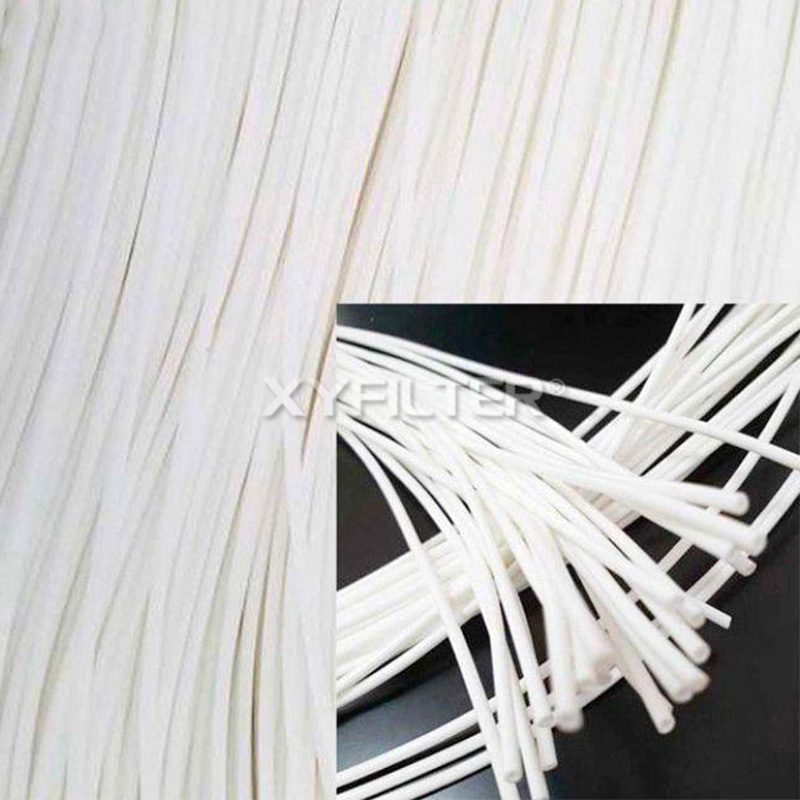

HUAYUANFILTER's 10-inch internal pressure UF membrane module uses PES hollow fiber membranes with high hydrophilicity, high strength, and high chemical resistance. The PES polymer material gives the ultrafiltration membrane excellent chemical resistance performance, especially after the special process modification of Xinyuan Membrane Technology, the pH tolerance range can reach 1-14, and it can be adapted to the chemical immersion of 5000ppm sodium hypochlorite solution
Xinyuan Environmental Technology's 10-inch internal pressure UF membrane module uses a PES hollow fiber membrane with high hydrophilicity, high strength and high chemical resistance, and has the following excellent characteristics:
1. The PES polymer material gives the ultrafiltration membrane excellent chemical resistance performance, especially after the special process modification of Xinyuan Membrane Technology, the pH tolerance range can reach 1~14, and it can be adapted to 5000ppm sodium hypochlorite solution. Chemical immersion
2. The optimized membrane filament preparation process makes the pore size distribution of the fiber membrane uniform and uniform, and can filter out substances above 0.01 microns, including bacteria, viruses, colloids and some macromolecular organics;
3. The PES membrane material itself is relatively hydrophilic. After our special hydrophilic modification process, the UCMEM series membrane products have excellent anti-pollution performance. In the actual project operation process, the chemical cleaning cycle is long and the membrane products are used. Long lifespan, and even under long-term chemical cleaning conditions, the hydrophilicity of the membrane product remains unchanged;
4. The PES membrane of Xinyuan Membrane Technology has a sponge-like structure with gradient distribution, so that under the same conditions of use, the UCMEM internal pressure series membrane products can achieve higher membrane filament strength and product water flow;
5. Simple and conventional interface design can realize high-efficiency installation work; U-PVC shell can withstand high-strength pressure.
Model | UC-MF-1060N | UC-UF-1060N |
size(mm) | Φ250x1713 | |
Membrane filtration method | Internal pressure | |
Membrane material | MPES | |
Membrane inner/outer diameter(mm) | 0.8/1.4 | 0.8/1.4 |
Membrane shell material | U-PVC | ABS |
Membrane aream² | 50 | |
Membrane pore size | MWCO 6000-150000 | 0.2,0.45um |
4 inch internal pressure hollow fiber membrane module
6 inch internal pressure hollow fiber membrane module
8 inch internal pressure hollow fiber membrane module
10 inch internal pressure hollow fiber membrane module
Horizontal hollow fiber membrane module
1. Industrial wastewater and municipal wastewater advanced treatment and reuse system;
2. Reverse osmosis and desalination pretreatment system;
3. Pure water preparation, drinking water purification;
4. Material separation and concentration: protein separation, drug purification, wine/beer clarification filtration, electrophoretic paint system filtration, etc.
