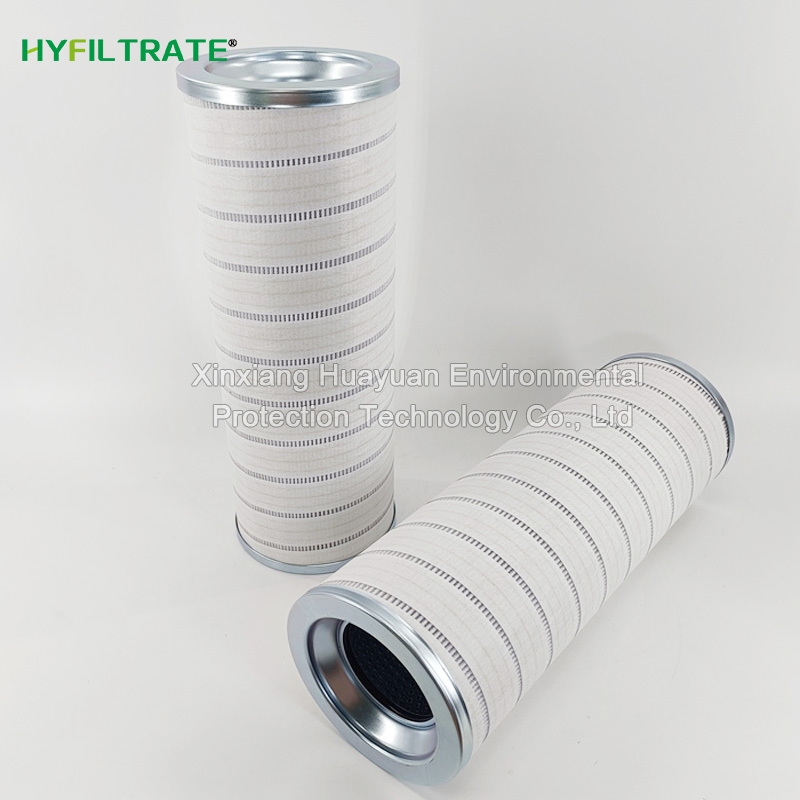

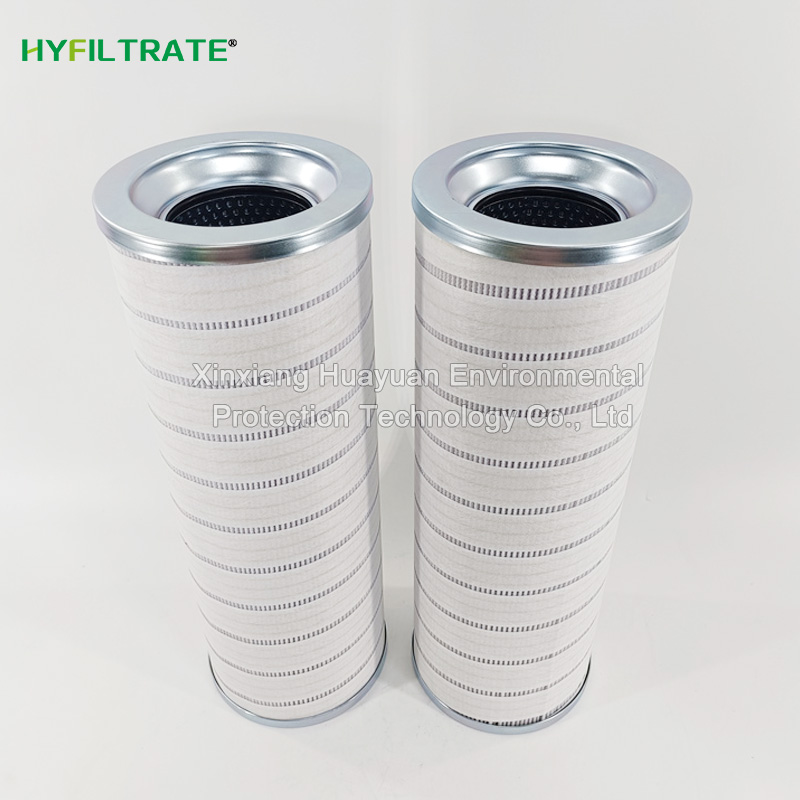

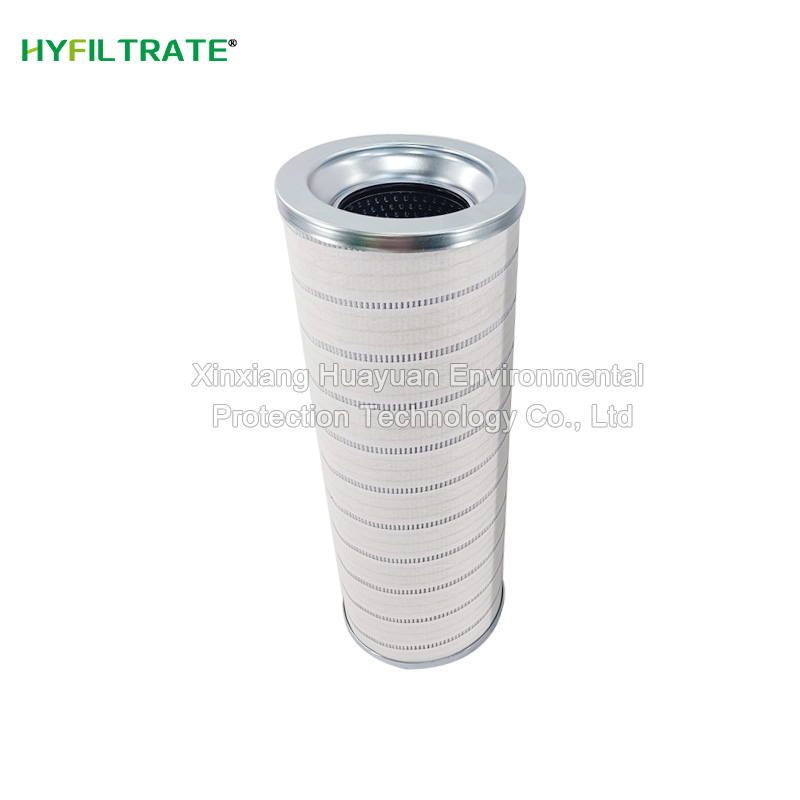

HC8300FKT30ZYGE replaces PALL hydraulic oil Filter Element, which is made of high-precision glass fiber with a filtration accuracy of 1-50 microns. It can be installed on the suction line, pressure oil line, return oil pipeline, bypass, and separate filtration system.

Before changing, drain the original hydraulic oil, check the return Oil Filter Element, suction oil filter element, and pilot filter element to see if there are iron filings, copper filings or other impurities attached. If there are, there may be a hydraulic component failure. After inspection and elimination, clean the system. HC8300FKT30ZYGE filter element has all the characteristics of the original filter element. You can buy it with confidence.

When changing the hydraulic oil, all hydraulic oil filter elements (return oil filter element, suction oil filter element, and pilot filter element) must be replaced at the same time, otherwise it is equivalent to not changing.

Testing standards

(1) ISO 2941 filter element - Test method for filter element rupture resistance

(2) ISO 2942 filter element - Test method for structural integrity of Hydraulic Filter Element

(3) ISO 2943 filter element - Test method for compatibility of hydraulic filter element materials with liquids

(4) ISO 3723 filter element - End-to-end compliance test

(5) ISO 3724 filter element - Fatigue characteristics determination
