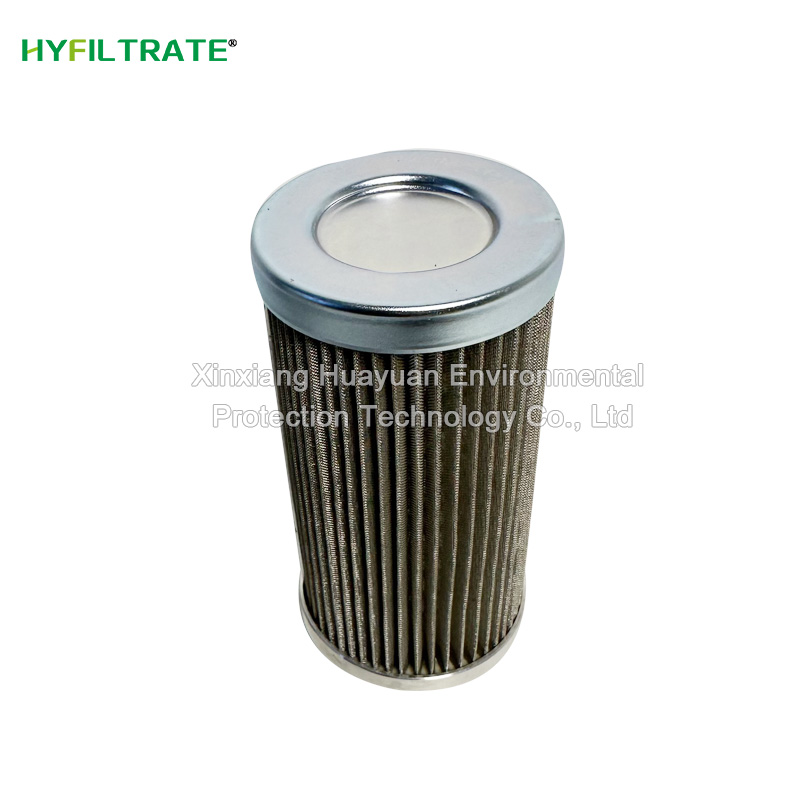

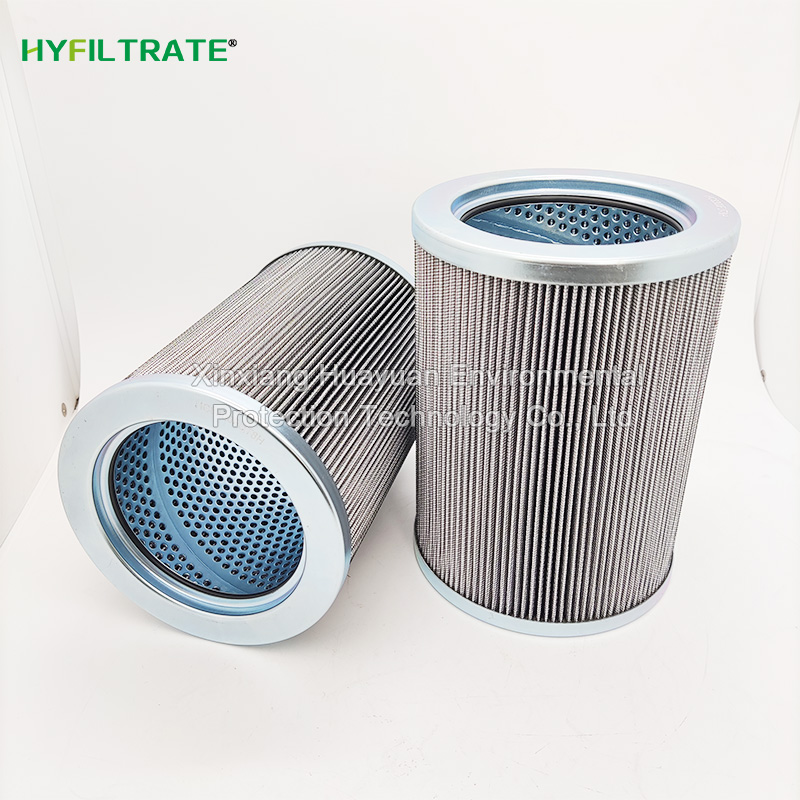

Replace PALL HC8300FUT8H hydraulic oil filter element

Replacing PALL HC8300FUT8H hydraulic oil filter element has high filtration accuracy, suitable for various media, and can work stably in a wide temperature and pressure range. It can effectively control the degree of media pollution to ensure equipment operation.The characteristics of HC8300FUT8H filter cartridge are as follows:Excellent filtration performance: using filter materials such as fiberglass and metal mesh, with a filtration accuracy of 25 μ m, it can effectively filter out solid part


Basic Barameters

Brand: HYFILTRATE

Model: HC8300FUT8H

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

Replacing PALL HC8300FUT8H hydraulic oil Filter Element has high filtration accuracy, suitable for various media, and can work stably in a wide temperature and pressure range. It can effectively control the degree of media pollution to ensure equipment operation.

The characteristics of HC8300FUT8H filter cartridge are as follows:

Excellent filtration performance: using filter materials such as fiberglass and metal mesh, with a filtration accuracy of 25 μ m, it can effectively filter out solid particles and gel like substances in the working medium, control pollution levels, and have strong pollutant absorption capacity. It has a large filtration area and can intercept impurities over a large area.

Wide adaptability: The working temperature range is -30 ℃ to+110 ℃, and the working pressure is between 21bar and 210bar. It can be adapted to various working media such as general hydraulic oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc.

Good stability and durability: With flow fatigue stability, the bypass device can protect the filter from damage, the filter element has a long service life, the skeleton has good bending strength, and the improved filter material can also dissipate static electricity and reduce pressure loss.


Technical Parameter

The main technical parameters of HC8300FUT8H filter cartridge are as follows:

Filtering accuracy: 25 μ m, capable of effectively filtering out impurities such as solid particles in the working medium.

Filter material: composed of fiberglass, metal mesh, etc., with good filtration and support performance.

Working pressure: 21 bar -210 bar (approximately 2.1 MPa -21 MPa), suitable for hydraulic systems with various pressure conditions.

Working temperature: -30 ℃ to+110 ℃, capable of stable operation over a wide temperature range.

Working medium: Suitable for general hydraulic oil, phosphate hydraulic oil, emulsion, water ethylene glycol, etc.

Pollutant carrying capacity: A larger pollutant carrying capacity can extend the replacement cycle and improve usage efficiency.


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
