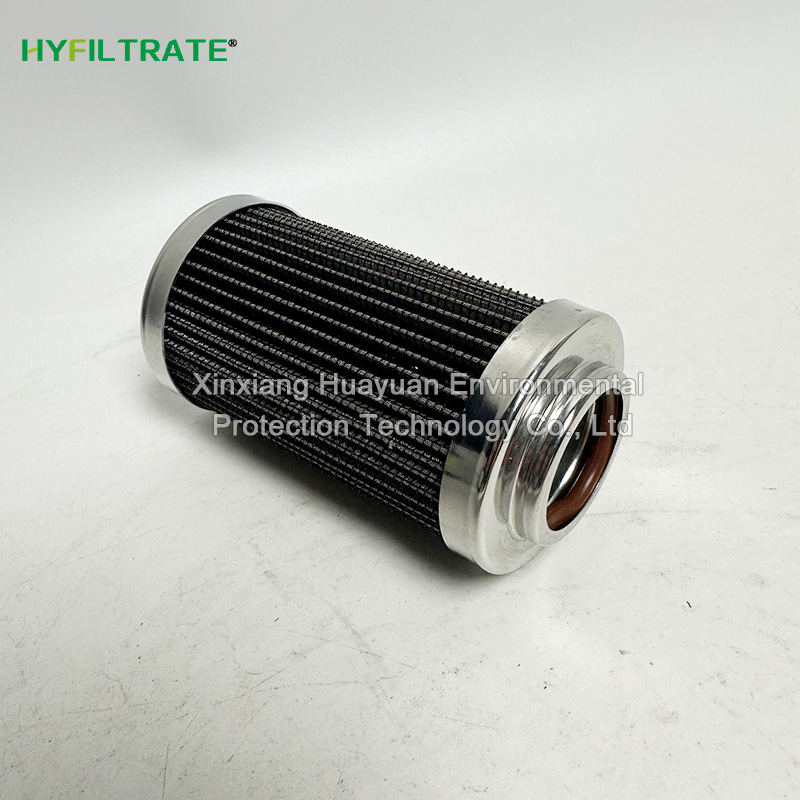

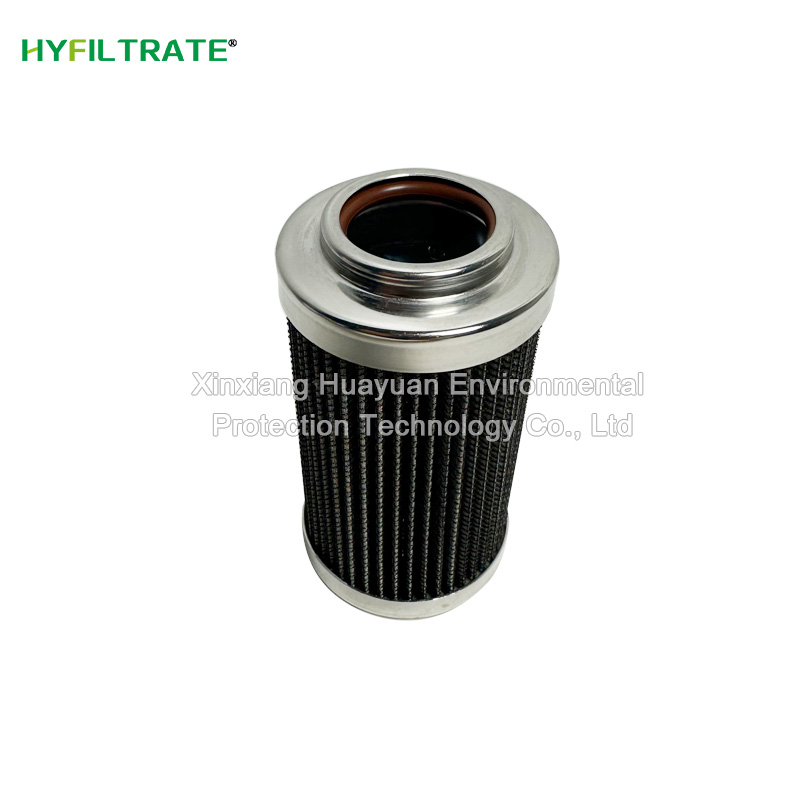

2.0004 G100-A00-0-M R928018919 Replaces BOSCH REXROTH filter element

2.0004 G100-A00-0-M R928018919 replaces BOSCH REXROTH filter element, which is used for oil pressure filtration in hydraulic and lubrication systems to filter out pollutants in the system. It uses high-quality glass fiber filter material.This series of filter cartridges is installed in the hydraulic system's oil circuit to remove metal powder and other mechanical impurities from the wear of various components in the hydraulic system, keeping the oil circuit clean and extending the service li


Basic Barameters

Brand: HYFILTRATE

Model: 2.0004 G100-A00-0-M R928018919

Filtration accuracy: 10um

External diameter: 45mm

Length: 83MM

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: Pleated filter element

Country of origin: China

2.0004 G100-A00-0-M R928018919 replaces BOSCH REXROTH Filter Element, which is used for oil pressure filtration in hydraulic and lubrication systems to filter out pollutants in the system. It uses high-quality glass fiber filter material.This series of filter cartridges is installed in the hydraulic system's oil circuit to remove metal powder and other mechanical impurities from the wear of various components in the hydraulic system, keeping the oil circuit clean and extending the service life of the hydraulic system.


Application scope:

Clean lubrication system, ship driving system, high flow flushing system, hydraulic transmission system, offline oil filtration system, servo controller pilot system, hydraulic system lubrication, lubricating oil circulation filtration system, power plant control system, steel plant control system, paper mill control system.


Related models:

R928007134

2.0059 H20XL-A00-6-M

R928007133

2.0059 H10XL-A00-6-M

R928007130

2.0059 G25-A00-6-M

R928007094

2.0059 G25-A00-0-M

R928007096

2.0059H6XL-A00-0-M

R928007132

2.0059 H6XL-A00-6-M



Technical Parameter

Performance indicators:

1. Filtration rate: 10 micrometers (um)

2. Work pressure: 0.1-21Mpa

3. Working media: mineral oil, synthetic oil, turbine oil, cleaning fluid, cutting fluid, fire-resistant oil, hydraulic oil, lubricating oil, transmission oil, etc

4. Working temperature: -30 ℃~110 ℃

5. Filter material: High quality glass fiber filter material is used

6. Structural strength: 1. 0Mpa, 2. 0Mpa, 16. 0Mpa, 21. 0Mpa


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
