Brand: HUAYUAN FILTER
Model: FC1275. Q002. XS
Filtration accuracy: 1-50um
External diameter: 79mm
Length: Standard size
Filter media: Hydraulic oil, lubricating oil, glycol, water
Filter element type: Pleated filter element
Country of origin: China

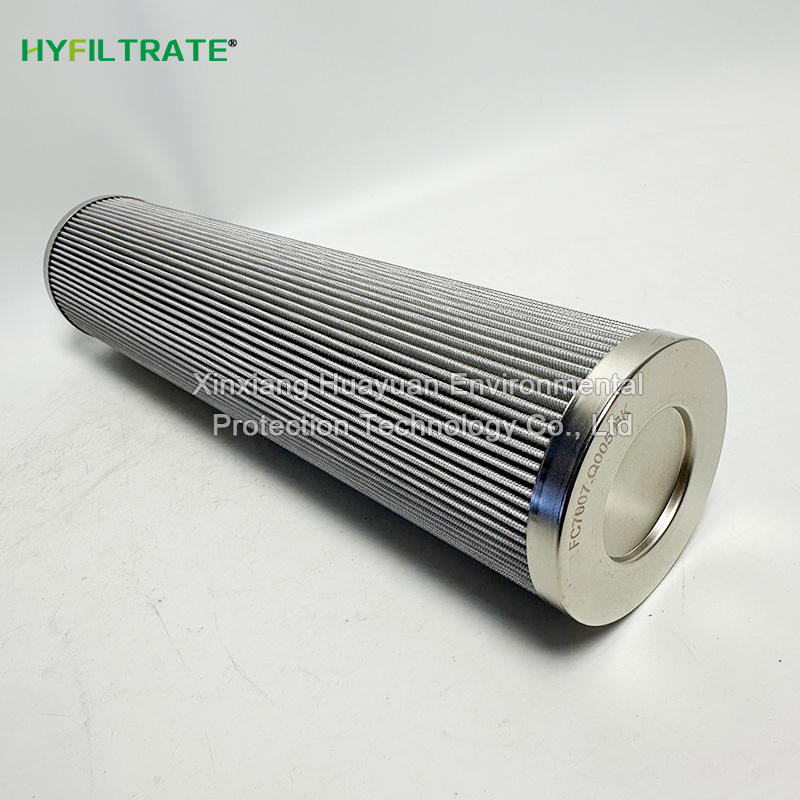

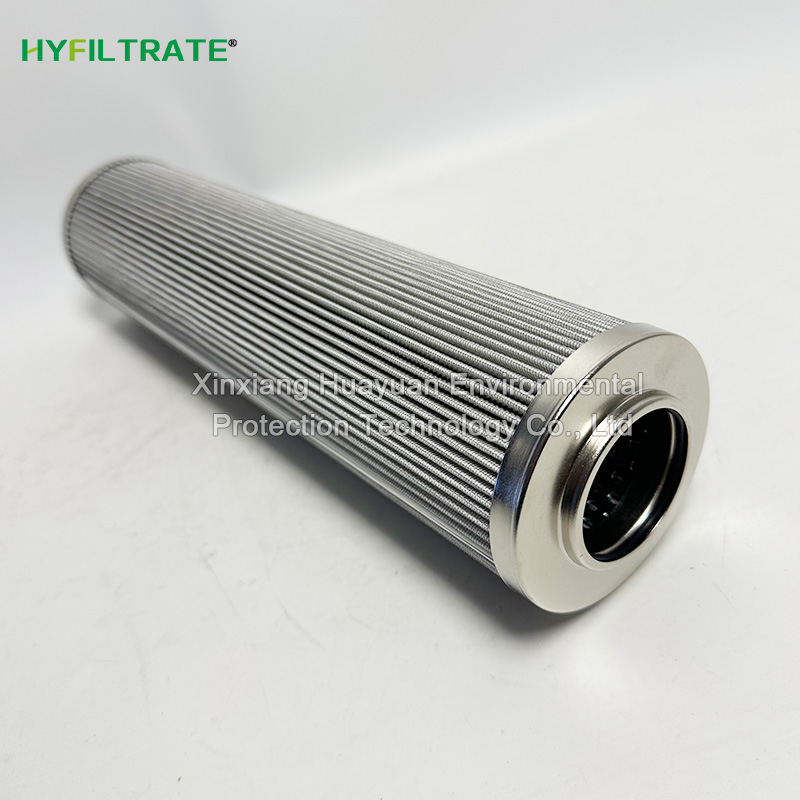

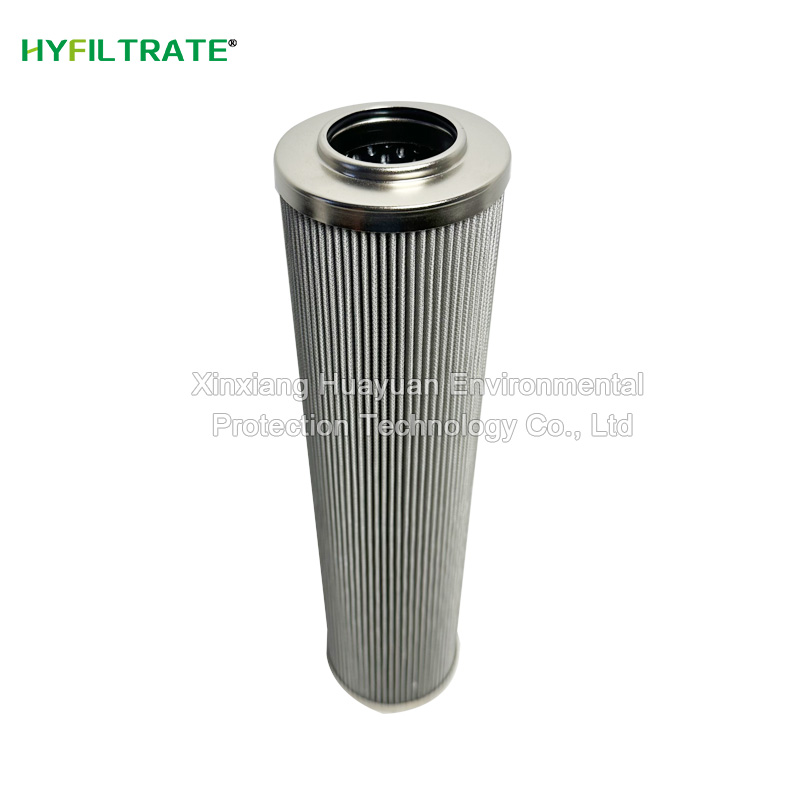

HYFILTRATE FC1275. Q002. XS replaces PARKER hydraulic oil Filter Element, and hydraulic oil has good filtration performance, exhibiting uniform surface filtration performance for filter particle sizes ranging from 1-100 μ m. It has excellent corrosion resistance, heat resistance, pressure resistance, and wear resistance, suitable for low and high temperature environments, and can be reused after cleaning without replacement. The stainless steel filter element has uniform pores, precise filtration accuracy, large flow rate per unit area, and long service life.
Filter element testing standard:
ISO2491 Hydraulic Filter Cartridge Fracture Resistance Test
Determination of ISO2492 Filter Element Structural Integrity
ISO2493 Verification of Compatibility between Filter Material and Liquid
ISO3723 End Load Test Method for Filter Cartridge
ISO3724 Determination of Fatigue Characteristics of Filter Cartridge
ISO3968 Determination of Differential Pressure Flow of Filter Cartridge
Multiple pass method for determining filtration characteristics of ISO4572 filter cartridge
1. Filtration accuracy: 1-100 μ m
2. Nominal flow rate: 10-150L/min
3. Nominal pressure: 1.6Mpa
4. Filter media: general hydraulic oil, lubricating oil, phosphate ester oil, emulsion, water ethylene glycol, etc
5. Working temperature: -30 ℃~110 ℃
6. Filter material: metal mesh
7. Skeleton: Galvanized steel/stainless steel
8. Sealing rings: Nitrile rubber, Fluororubber
