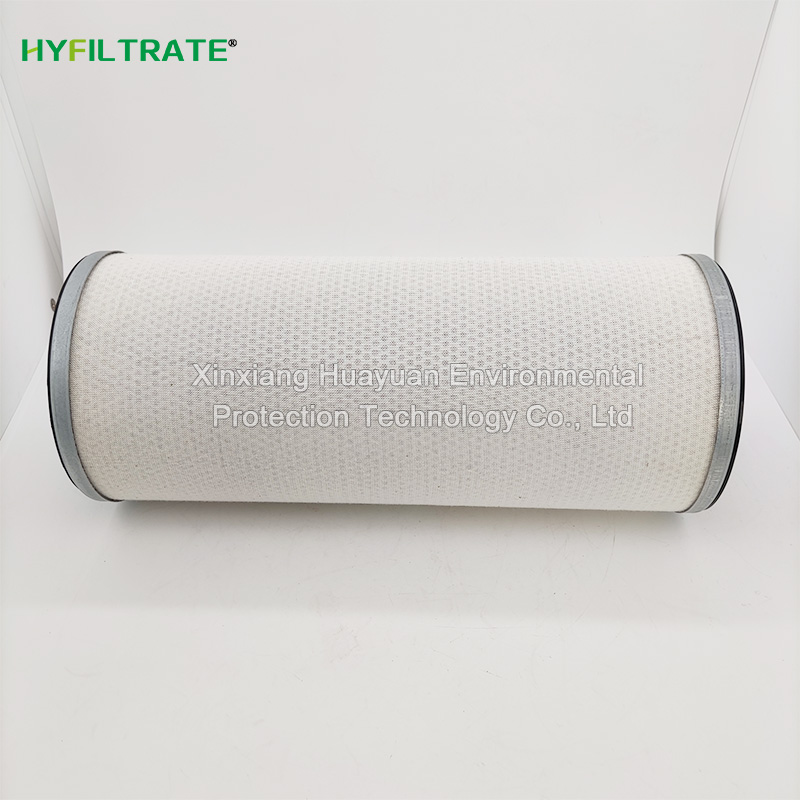

HYF - φ 150x8.5x350x10 μ m hydraulic oil filter element

The HYF - φ 150x8.5x350x10 μ m hydraulic oil filter element has a filtration accuracy of 10 microns, which can effectively remove impurities. The outer diameter and length are designed reasonably, providing a large filtration area and flow rate, thus achieving the advantages of efficient filtration.The HYF - φ 150x8.5x350x10 μ m filter cartridge may have the following characteristics:High filtration accuracy: With a filtration accuracy of 10 microns, it can effectively filter out small particles


Basic Barameters

Brand: HYFILTRATE

Model: HYF - φ 150x8.5x350x10 μ m

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

The HYF - φ 150x8.5x350x10 μ m hydraulic oil Filter Element has a filtration accuracy of 10 microns, which can effectively remove impurities. The outer diameter and length are designed reasonably, providing a large filtration area and flow rate, thus achieving the advantages of efficient filtration.

The HYF - φ 150x8.5x350x10 μ m filter cartridge may have the following characteristics:

High filtration accuracy: With a filtration accuracy of 10 microns, it can effectively filter out small particles and pollutants in the fluid, ensuring the cleanliness and stability of the system. It can be applied in situations where fluid cleanliness is required.

Large Flow Capacity: The filter element has a large outer diameter and adopts a large-diameter centerless skeleton design, which increases the filtration area and thus has a large flow capacity, which can meet the filtration needs of high flow rates.

High pollutant holding capacity: The larger filtration area and possible multi-layer gradient aperture filtration structure enable it to have a higher pollutant holding capacity, accommodate more impurities, extend the service life of the filter element, and save user costs.

Reasonable structural design: It may adopt a single end opening and flow direction structure from inside to outside, where impurities are intercepted inside the filter element for easy replacement and maintenance, while the equipment has a small installation space.

Wide chemical compatibility: The end cap and filter layer may be welded using hot melt welding process, without any adhesive present, thus having a wide range of chemical compatibility and can be applied in various fields.


Technical Parameter

The technical parameters of HYF - φ 150x8.5x350x10 μ m filter cartridge are as follows:

Filtering accuracy: 10 μ m, can effectively filter out particle impurities with a diameter greater than 10 microns.

Size specifications: outer diameter of approximately 150mm, length of approximately 350mm.

Filtration area: Due to the similar size of the filter element to a 20 inch (around 508mm) high flow filter element.

Single filtration flow rate: Referring to a 20 inch high flow filter element, the single filtration flow rate may be around 10m ³/H.

Working temperature: Generally, the working temperature of high flow filter cartridges is ≤ 80 ℃, and it is speculated that the working temperature of this filter cartridge is also within this range.

Maximum pressure difference: Usually, the positive pressure difference of the high flow filter element is ≤ 0.42MPa (25 ℃), and the replacement pressure difference is ≤ 0.28MPa (25 ℃). This filter element may also meet this parameter range.

Sealing materials: Common ones include silicone rubber, nitrile rubber, EPDM rubber, fluororubber, etc., depending on the application scenario and fluid properties of the filter element.

Support material: The upstream and downstream support materials may be polypropylene, and the support frame and structural components may also be made of polypropylene.
