Brand: HYFILTRATE
Model: 7687 7373
Filtration accuracy: 1-50μm
External diameter: Standard size
Length: Standard size
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

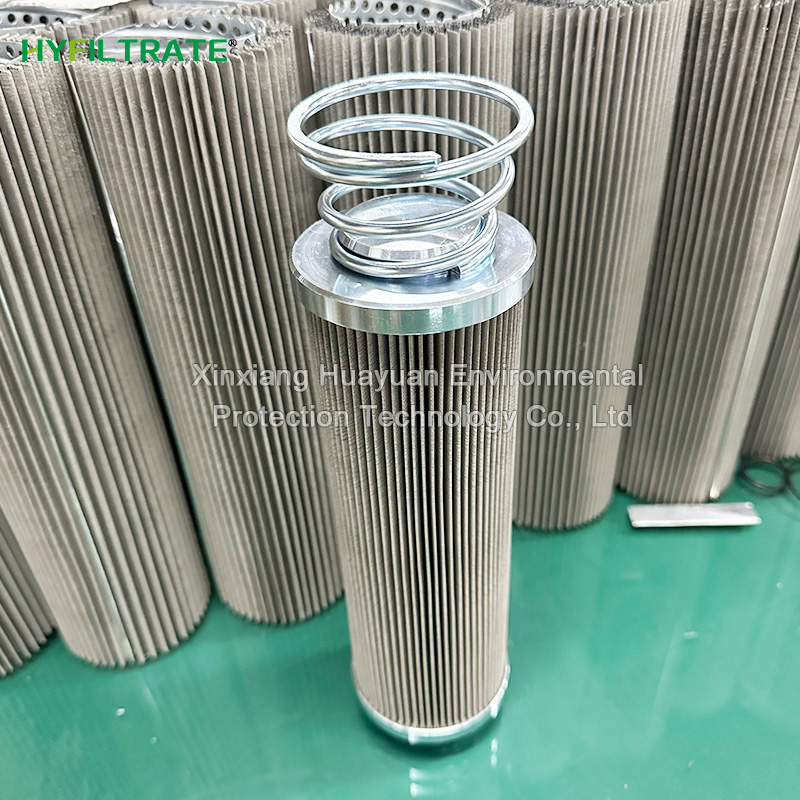

7687 7373 hydraulic oil Filter Element is highly efficient in filtration, super durable, precise and stable, economical and environmentally friendly, comprehensively safeguarding the safe operation of hydraulic systems.
The hydraulic Oil Filter Element (model 7687 7373) has the following comprehensive advantages:
1. Efficient filtration performance
Uniform filtration can be achieved for particles ranging from 2-200 μ m, and the surface filtration effect is stable
Stainless steel filter element with uniform pores, high filtration accuracy, and large flow rate per unit area
2. Excellent durability
Pressure resistance: able to withstand high pressure differences (up to 42MPa), with high strength and strong resistance to deformation
Temperature resistance: Suitable for a wide temperature range of -30 ℃ to+110 ℃, some models can withstand high temperatures up to 135 ℃
Corrosion/Wear Resistance: Compatible with media such as hydraulic oil and phosphate ester oil, with stable long-term performance
3. Structural reliability
No deformation under axial load, maintaining accuracy at ultimate pressure drop, and stable mesh diameter
High number of flow fatigue cycles (washable type ≥ 20000 cycles, one-time ≥ 10000 cycles)
4. Economy and Environmental Protection
Reusable for cleaning and use, reducing replacement costs
Comply with ISO standards
Suitable for fields such as hydraulic systems, petrochemicals, railway machinery, etc
Summary: This filter element has the core advantages of high precision, strong durability, and low maintenance cost, meeting the requirements of harsh working conditions
The core technical parameters of the hydraulic oil filter element (model 7687 7373) are as follows:
1. Filtering performance
Filtering accuracy: 1-200 μ m (special precision can be customized), achieving uniform surface filtration for 2-200 μ m particles
Filtration efficiency: The filtration ratio is evaluated through ISO 4527 multi pass test, which can efficiently intercept impurities such as metal debris and carbon black
2. Pressure resistance and strength
Working pressure: Conventional 1.0MPa, high-pressure models can withstand 42MPa system pressure
Pressure drop characteristics: Total pressure drop ≤ 0.2MPa at rated flow rate (ISO 3968 standard)
Structural strength: Passed ISO 2941 fracture test, no deformation under axial load, stable mesh at ultimate pressure drop
3. Environmental adaptability
Temperature range: -30 ℃ to+110 ℃, some models support high temperature of 135 ℃
Media compatibility: Suitable for hydraulic oil, phosphate ester oil, water ethylene glycol, etc
4. Lifespan and Maintenance
Fatigue life: disposable filter element ≥ 10000 cycles, washable type ≥ 20000 cycles (ISO 3724 standard)
Cleaning and reuse: Stainless steel filter supports repeated cleaning, reducing replacement costs
5. Other key parameters
Flow characteristics: high flow rate per unit area, low oil resistance, and avoidance of pump cavitation
Cleanliness: The factory cleanliness of the filter element meets the requirements of ISO 4406 level
