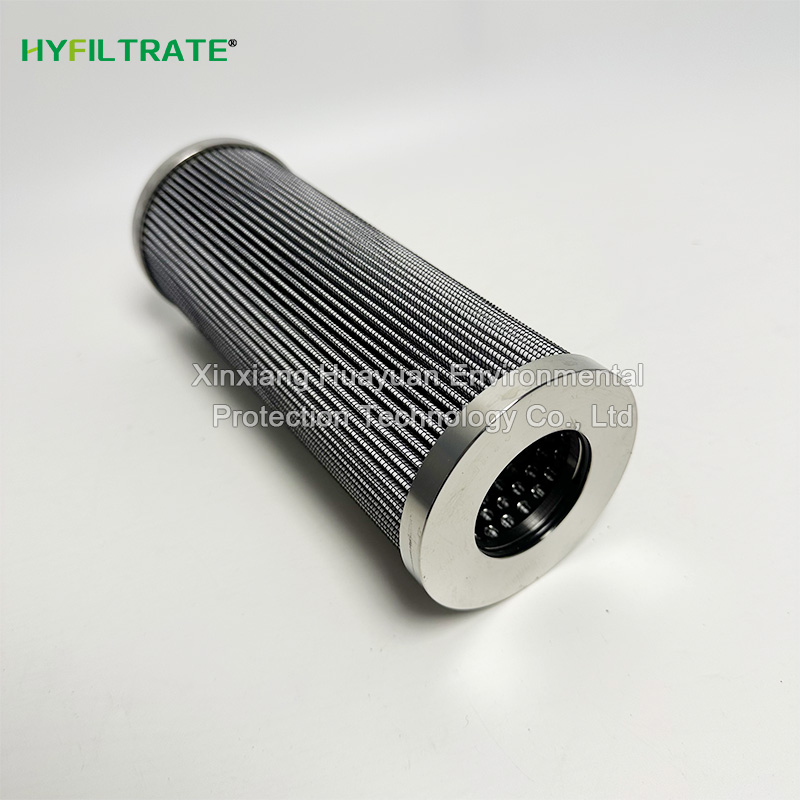

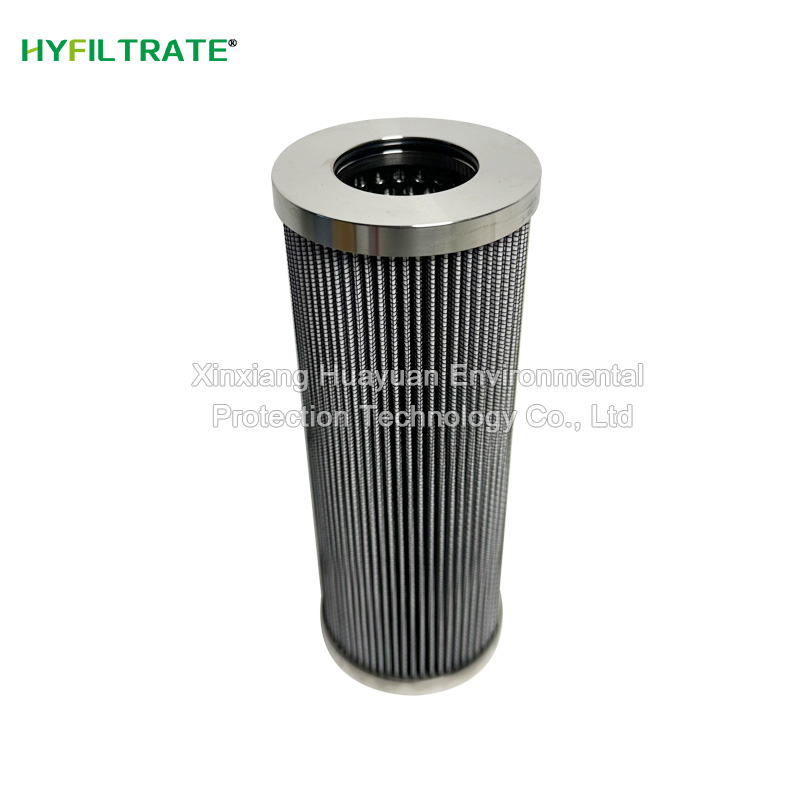

Replace PALL HC9601FDT8H-Y923 hydraulic oil Filter Element with high-precision filtration (10-25 μ m), pressure resistance of 21MPa, pressure drop as low as 0.15MPa, and wide temperature range adaptability of -40 ℃~120 ℃, providing efficient and reliable cleaning protection for hydraulic systems.

The core features of HC9601FDT8H-Y923 hydraulic Oil Filter Element are as follows:

1. High precision filtering performance

Multi layer filtration structure: using a combination of fiberglass filter material and stainless steel woven mesh/sintered mesh, the filtration accuracy covers the range of 1-100 μ m, which can effectively intercept metal debris, gel like substances and other pollutants, ensuring the cleanliness of hydraulic oil

Efficient separation capability: By using longitudinal bonding technology (imported from Germany), the filtration efficiency is improved, the filter material is folded evenly, the effective filtration area is increased, and the pressure drop is reduced to below 0.2MPa

2. High strength and durability

Pressure and temperature resistance: The working pressure reaches 21MPa (some models have 210bar), suitable for temperatures ranging from -30 ℃ to+110 ℃, and compatible with media such as hydraulic oil and water ethylene glycol

Structural strengthening: The spiral center tube design (with the through-hole facing the center of the filter element) enhances compressive strength, and has passed the ISO2941 rupture test (without deformation under axial load), with a fatigue life of over 100000 cycles

3. Wide adaptability and economy

Strong compatibility: can replace imported brand filters such as PALL and HYDAC, suitable for scenarios such as construction machinery, wind power hydraulic stations, etc

Material optimization: Fluorine rubber ring or nitrile rubber seal, corrosion-resistant; Some models support washable reuse, reducing maintenance costs.
