Brand: HYFILTRATE
Model: HC9021FDP8H-Y923
Filtration accuracy: 1-50μm
External diameter: Standard size
Length: Standard size
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

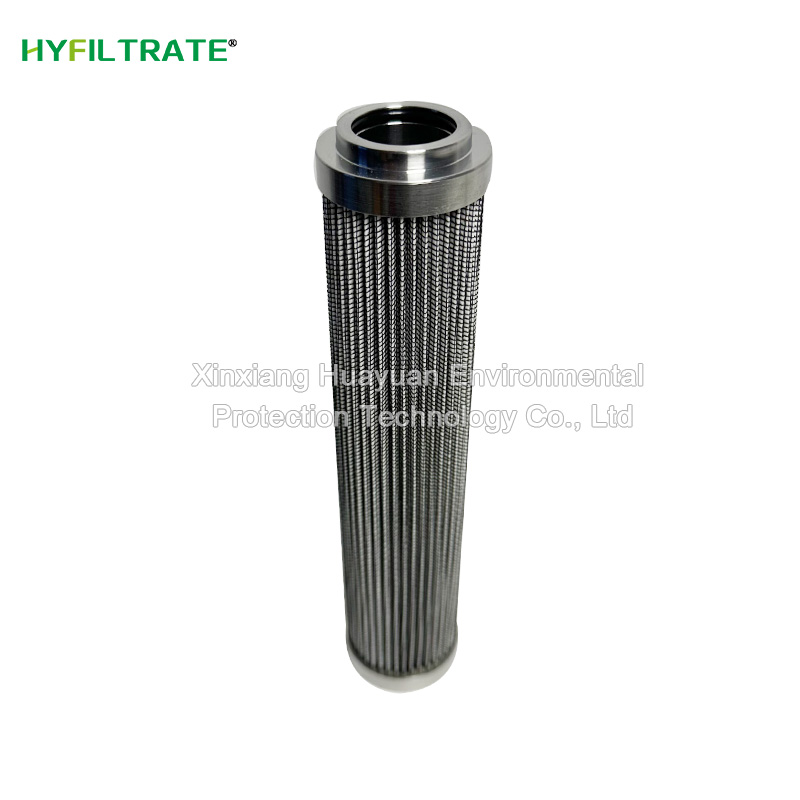

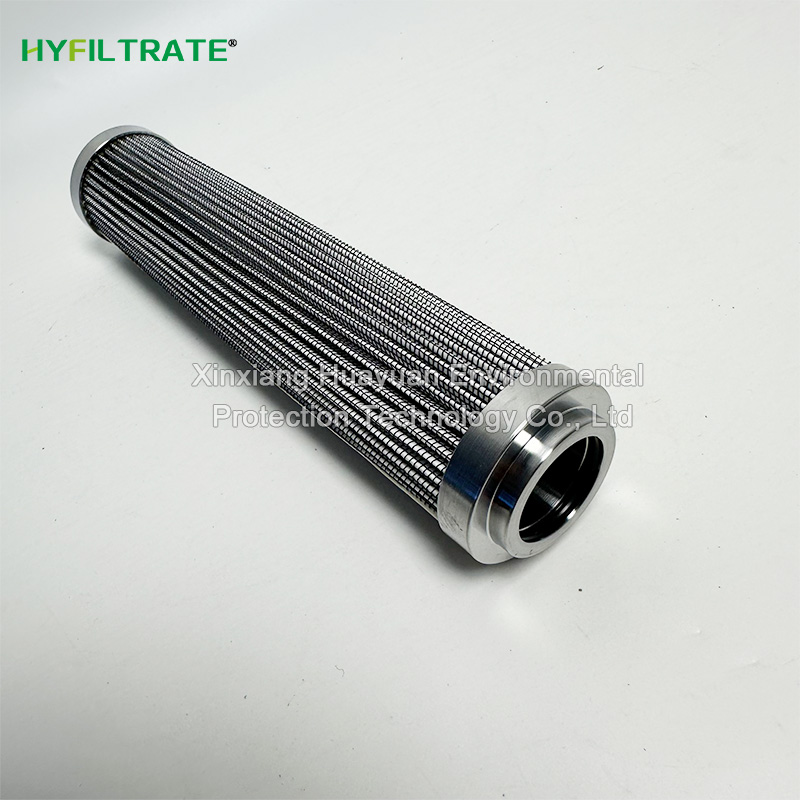

The HC9021FDP8H-Y923 Filter Element has the core advantages of high-precision filtration, high pressure corrosion resistance, and long service life intelligent maintenance, fully adapting to harsh working conditions.
The main advantages of HC9021FDP8H-Y923 filter cartridge are as follows:
1. Precision filtration performance
Filtering accuracy: 1-100 μ m (using "matrix mixed fiber" technology to improve impurity interception efficiency)
Strong pollutant absorption capacity: multi-layer fiberglass filter material combined with stainless steel woven mesh extends the service life
Low pressure drop design: optimizing pleat depth and quantity to reduce system energy consumption
2. Structural reliability
High strength skeleton: made of corrosion-resistant stainless steel material, capable of withstanding a high pressure difference of 10MPa and pulse pressure
Sealing performance: Fluorine rubber or nitrile rubber sealing ring, ensuring no leakage
3. Environmental adaptability
Temperature resistance range: -40 ℃ to+110 ℃, covering extreme working conditions requirements
Corrosion resistance: 316L stainless steel and titanium alloy are optional, suitable for acid-base and salt spray environments
4. Application compatibility
Alternative international brands: compatible with imported filters such as PALL and HYDAC
Cross industry applicability: Hydraulic systems in wind power, engineering machinery, petrochemical and other fields
5. Maintenance and optimization
Intelligent warning: Integrated differential pressure sensor to reduce unplanned downtime
Long life design: The disposable filter element has a circulation of ≥ 10000 times, and the washable version can reach 20000 times
The technical parameters of HC9021FDP8H-Y923 hydraulic oil filter element are as follows (compiled from multiple sources of information):
1. Basic parameters
Material: Fiberglass filter paper (BN), stainless steel woven mesh (W) or sintered mesh (V)
Working temperature: -40 ℃~+110 ℃ (some models can reach up to 135 ℃)
Working pressure: 21bar~210bar (approximately 2.1MPa~21MPa)
Pressure difference: Standard models range from 0.35MPa to 0.4MPa, while high-pressure models can reach up to 32MPa
Filtering accuracy: 1-100 μ m (divided into high, medium, and low levels, with 1-5 μ m being high accuracy)
2. Structural parameters
Sealing material: fluorine rubber ring (high temperature resistant) or nitrile rubber (universal type)
Skeleton strength: 1.0MPa~21.0MPa (graded according to requirements)
Filter cartridge form: Foldable, pleat depth ≤ 20mm to optimize filtration area
3. Performance parameters
Pollution absorption capacity: Combination of multi-layer fiberglass and stainless steel mesh, extending the replacement cycle
Differential pressure loss: optimizing pleat design to reduce system energy consumption
Compatible media: acid ester hydraulic oil, water ethylene glycol, emulsion, etc
4. Application parameters
Applicable industries: Hydraulic systems for wind power, engineering machinery, petrochemicals, etc
Installation position: oil suction path, pressure oil path, return oil path or independent filtration system
Alternative models: compatible with international brands such as PALL HC9021FDT8H and HYDAC
