Model: SG-M-6HI
Brand: HUAYUANFILTER
Filtration accuracy: 10um,20um
Origin: China

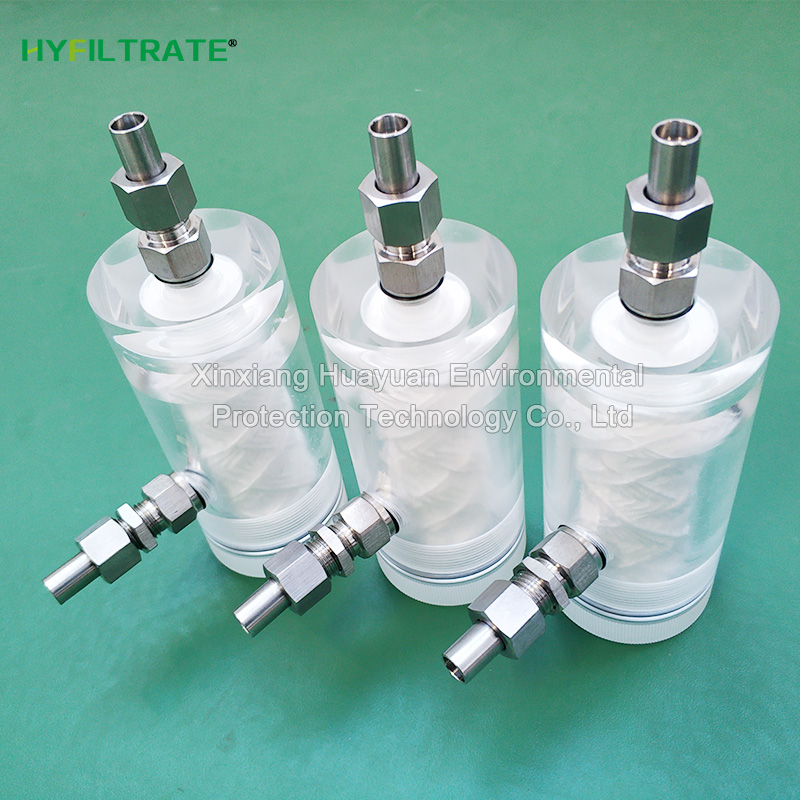

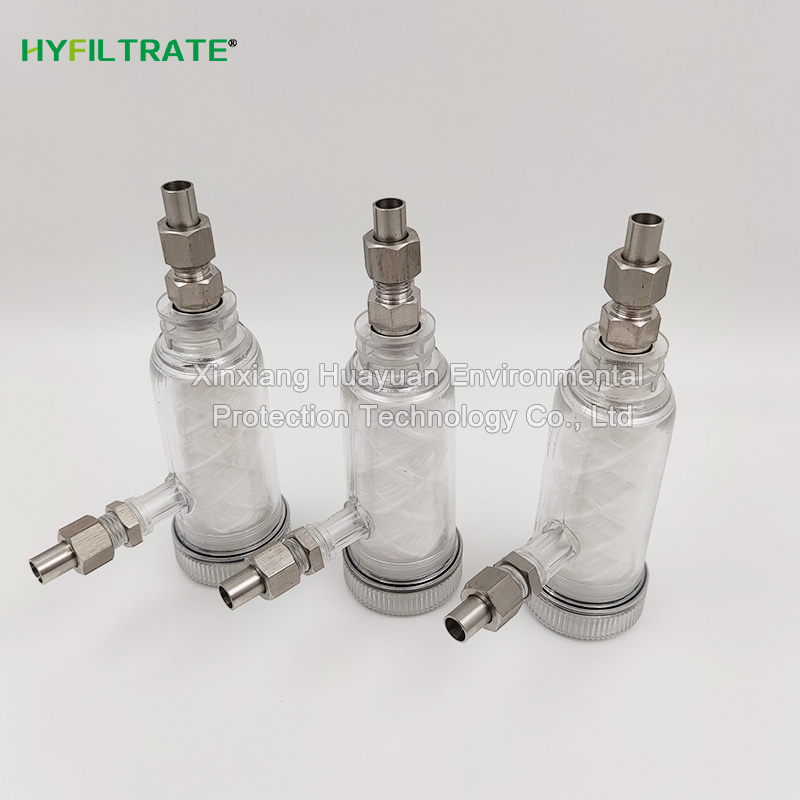

HUAYUAN FILTER SG-M-6HI pressure Water Sample Filter can be used to filter the instrument sample water from power plant, steel plant and other industries, and the filtration accuracy is as high as 10um. The inner Filter Element is made of PP cotton thread material, which has the characteristics of environmental protection and pollution-free.
1. The low-pressure filter performs primary filtration of the water vapor sample (set in the high-pressure system). The filter element can be used for a long time, effectively preventing the blockage of the device components and pipelines. 2. The low pressure filter performs secondary filtration on the sample. It is used to filter the sample water of the instrument and protect the electrode filter of the instrument. The filter element is pressed by cotton thread, which has high filtration accuracy and has a check valve to prevent the electrode from losing water. The shell is made of PC alloy. When replacing the filter element, just unscrew the lower end cover.
Technical parameters of water sample filter
1. Nominal pressure: ≤ 0.8MPa
2. Experimental pressure: 1.0MPa
3. Applicable medium: instrument sample water
4. Applicable temperature: ≤ 60 ℃
5. Flow rate: 2000ml / min
Origin: Xinxiang City, Henan Province, China
Brand: HUAYUAN FILTER
Delivery time: 3 days
Express: UPS / TNT / DHL
