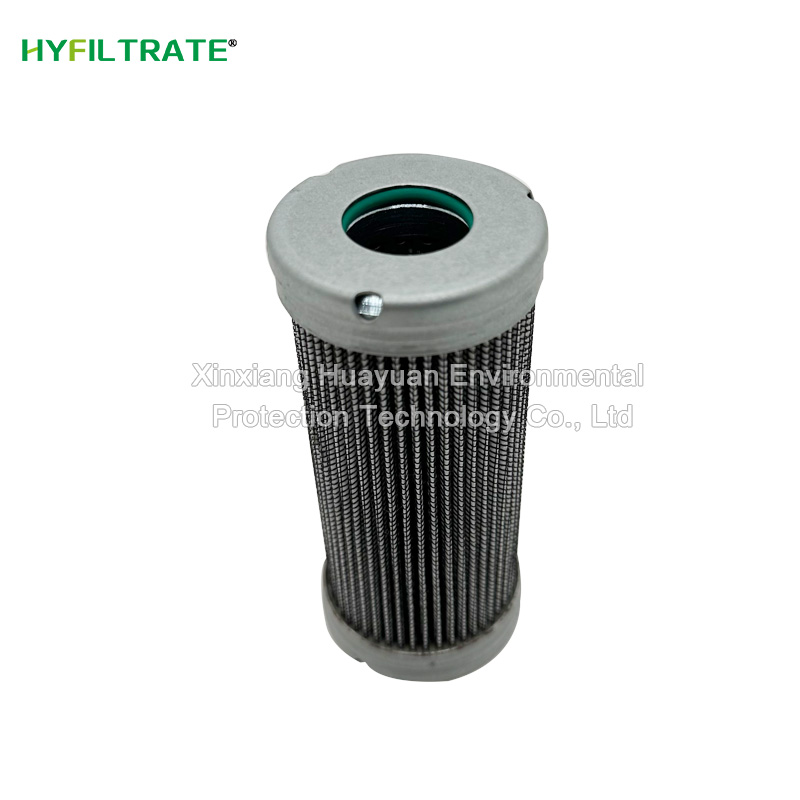

The Replace PALL HC9801FDT4Z hydraulic oil Filter Element has excellent filtration performance and can exhibit uniform surface filtration performance for filter particle sizes ranging from 2 to 200 μ m. It has excellent corrosion resistance, heat resistance, pressure resistance, and wear resistance, suitable for low and high temperature environments, and can be reused after cleaning without replacement. The stainless steel filter element has uniform pores, precise filtration accuracy, large flow rate per unit area, and long service life.

-Filtering accuracy: Common specifications include 1 μ m, 3 μ m, 6 μ m, 12 μ m, 25 μ m, etc., which can be selected according to needs and can effectively intercept particle impurities in hydraulic oil.

-Filtration efficiency: For particles with corresponding precision, a filtration ratio of ≥ 200 means a filtration efficiency of 99.5% or higher.

-Pollutant carrying capacity: Depending on different working conditions and usage conditions, the pollutant carrying capacity is usually around a few hundred grams. The pleated design increases the filtration area and enhances the pollutant carrying capacity.

Pressure related parameters

-Working pressure: The maximum working pressure can reach 35MPa, which can adapt to the working requirements of high-pressure hydraulic systems.

-Initial pressure difference: The initial pressure difference is relatively low, generally less than 0.35 bar, to reduce energy loss in the hydraulic system and ensure efficient operation of the system.

-Burst pressure: It has high resistance to rupture, with a rupture pressure much higher than the working pressure, ensuring that the filter element is not damaged in high-pressure fluctuation environments.

Material and structural parameters

-Filter material: High performance glass fiber filter material is mainly used, which has good filtration performance, chemical stability, and mechanical strength.

-End cap and frame: Metal materials such as aluminum alloy or stainless steel are usually used to ensure the structural strength and pressure resistance of the filter element.

-Sealing materials: mostly high-performance sealing materials such as fluororubber, with good chemical compatibility, can adapt to various hydraulic oil media, and ensure sealing effect.

Size and adaptation parameters

-Dimensions: Different application scenarios will have corresponding size specifications, suitable for filters in various hydraulic systems.

-Interface form: Common interface forms match mainstream hydraulic filters in the market, making installation and replacement convenient.
